Quality Heating
120 Watt/m² QH Grid without thermostat
Build height of only 4.5mm
Direct tiling possible
Maximum heat loss of 4%
Select a thermostat
Choose the right thermostat for your underfloor heating
Delivery within 3 business days
Best price guarantee
Free shipping
Free and no-obligation advice
Free and no-obligation advice
Feel free to contact us via the customer service page. We are available Monday to Friday from 9:00 to 12:30 and from 13:00 to 17:00, and will be happy to assist you with personalised advice.
Download our Quality Heating app for free
Download our Quality Heating app for free
We have developed our Quality Heating app which allows you, if your product has Wi-Fi, to control it easily. Through the app you can, among other things, adjust the temperature and create heating schedules. The Quality Heating app is available in the App Store for iPhone (iOS) and for Android.
Professional or installer? Discover the benefits
Professional or installer? Discover the benefits
Do you regularly purchase electric heating as part of your profession or business? Then become a professional customer at Quality Heating and benefit from additional service for your clients and attractive professional advantages for yourself.
Do your business activities fall into one of the following categories? If so, you can apply for a professional order account with us: contractor, finishing, installer, electrician, e-commerce or architect.
Please include the following information with your request:
- Company name
- Registration number (CoC)
Send your request by email to info@qualityheating.nl.
Product specifications
Pros and cons
Description

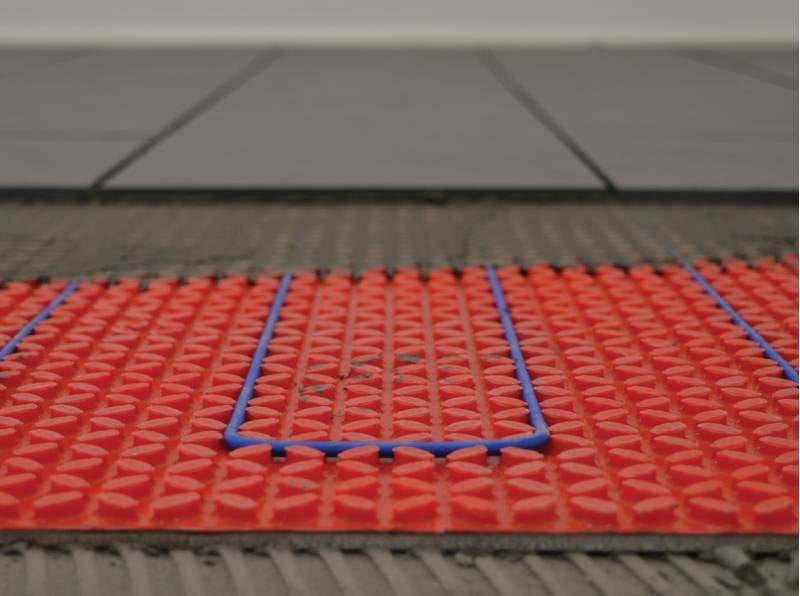

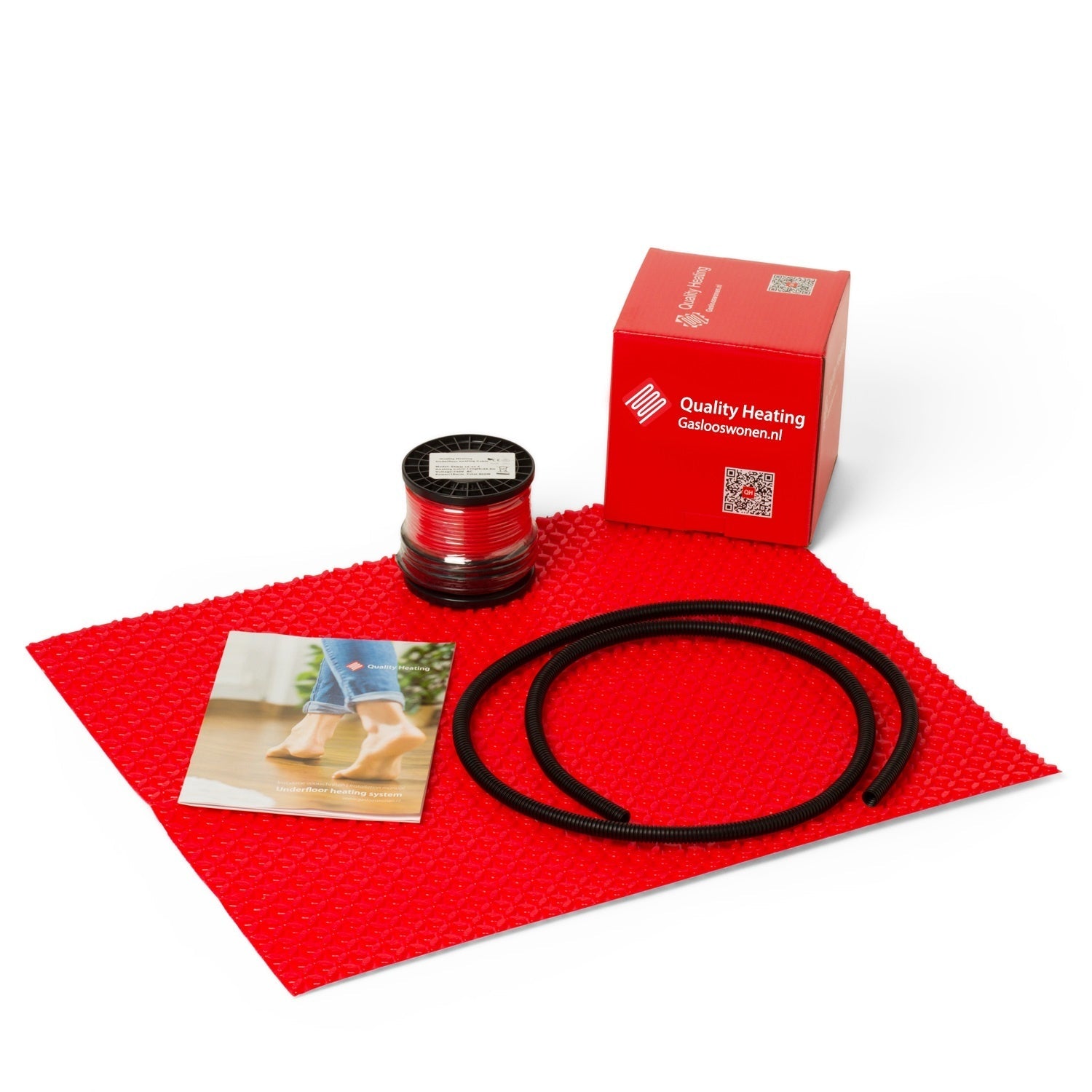

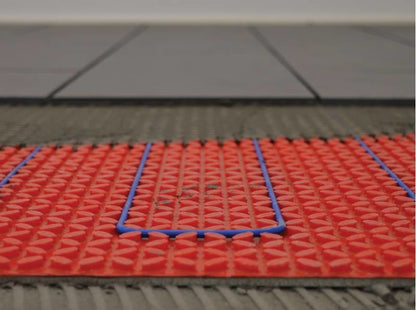

The QH Grid underfloor heating system from Quality Heating has been developed for energy-efficient and fast warming. QH Grid also helps prevent cracks in tiled floors, making floor leveling unnecessary. Of course, this system also ensures easy installation.
This new underfloor heating system from Quality Heating has a thickness of only 5 mm (including the underfloor heating cable system). The Quality Heating QH Grid can be glued directly onto an existing tiled, concrete, screed or wooden floor, or placed on the ISO-64 insulation boards. Tiles can be applied directly onto the QH Grid system with tile adhesive. Of course, they can also be levelled.
If you follow the system build-up below, you will have a heat loss of only up to 4%!
- ISO-64 insulation boards 6, 10, 20 or 30 mm (optional)
- QH Grid 4.5 mm with cable system
- Tiles as floor finish or other floor covering combined with self-leveling compound
Calculate total area
Choose the desired power/area and thermostat type in the selection table above next to the photo. The price will automatically adjust and become visible. Example: you have a bathroom of 3.8 m². Total required is 3.5 m² of QH Grid system. You are then short by 0.3 m². You can order this separately here.
Our cable systems are made of Teflon and have a wattage of 18 W per meter.
The QH Grid system is very handy to use in difficult corners. You can click the cable into the system yourself so that no corner is too difficult. Note that the spacing between the cables must be at least 6 mm.
Now you may wonder what spacing you should use to make the best use of the cable. This differs per wattage. The higher the wattage, the closer the cable will be placed.
Below you will find a calculation to easily calculate the spacing.
You want to heat your 3 m² bathroom with a power of 160 Watt per m². This means a total power of 480 Watt. You should divide the heated area by the total wattage and multiply the result by 18 Watt per meter.
(3 m² ÷ 480 W) × 18 W/m = 0.113
The cable spacing in this case is then 11 cm. The cable spacing therefore determines the power per m².
80 W/m²: Supplemental heating for large rooms
120 W/m²: Primary heating for large rooms
160 W/m²: Poorly insulated room or smaller room
Are you going to level the system? Keep in mind that 5 mm of self-leveling compound is consumed in the QH Grid system to fill the grooves. This means that to reach the minimum height you should order 10 mm of self-leveling compound. Always ensure that a primer is applied to your subfloor to achieve good adhesion.
Direct leveling
Thermostats overview
PRF-78 white or black
The PRF-78 has a beautiful design with soft-touch buttons. The touch-screen thermostat is a programmable room thermostat that can be connected to your electric underfloor heating. This thermostat has an attractive appearance and is one of the most advanced of its kind. The Soft Touch 7-Day Programmable thermostat comes with a 2-year manufacturer's warranty.
For more information about the PRF-78 click here. Would you prefer another type of thermostat? Under 'make a choice' you can add your suitable thermostat.
PRF-79 WiFi
The user-friendly PRF-79 WiFi electric underfloor heating thermostat can be operated via the app. This thermostat features a zoning control system, a countdown timer function, is programmable and fully controllable via the application. App available for iOS/Android: Quality Heating.
More information about the PRF-79 Wifi thermostat click here
PRF-80 WiFi
WiFi thermostat with a beautiful design. The PRF-80 WiFi electric underfloor heating thermostat is controllable with the app. This thermostat features a zoning control system, a countdown timer function, is programmable and fully controllable via the application. App available for iOS/Android: Quality Heating.
More information about the PRF-80 Wifi thermostat click here
V1 Touch WiFi thermostat Black or white
The V1 Touch WiFi thermostat has a beautiful design and can be controlled from a smartphone, tablet or computer. It learns how the heating system is used and the unique way a home performs. It automatically suggests ways to save energy, for example what the temperature should be set to when you are not at home.
More information about the Manual thermostat click here
Simple Manual
A simple but extremely accurate thermostat that takes into account the afterheat of the installation. It switches the installation off or on based on the set temperature. This way the residual heat still in the system fully benefits the heated space without overshooting the desired temperature.
More information about the Manual thermostat click here
OCD5 Busch Jaeger and Jung
OCD5 Busch Jaeger and Jung: a unique recessed 7-day programmable thermostat with an adaptive self-learning warm-up (optimizer) control and a color touchscreen. Can be set in multiple languages (NL, FR, DE and EN) and fits perfectly into Busch Jaeger switch frames (and other switch frames, GIRA and ELKO). Adaptive control and an energy-efficient warm-up program. Can control floor temperature, room temperature or both.
More information about the OCD5 thermostat click here
Heatit Z-wave TRM3 home automation thermostat
Magnum Z-wave home automation thermostat from Heatit equipped with the latest developments. This thermostat can be controlled with your smartphone or tablet. Fully 7-day programmable and available in white or black. Supplied including floor sensor and Dutch manual. Thermostat works with Sensio, Fibaro and Zipato home automation systems. This thermostat is delivered standard with a floor sensor.
More information about the Z-wave thermostat click here
WiFi V3 thermostat with receiver
With the WiFi V3 thermostat with receiver, relay systems are a thing of the past! The thermostat, powered by 2 x AA batteries, can be placed anywhere in the house and is wirelessly connected to the receiver. The receiver supports underfloor heating up to a maximum power of 3000 Watt. If you apply more than 3000 Watt power, you can easily expand the set with an additional receiver.
More information about the WiFi V3 thermostat with receiver click here
Warmup 6IE WiFi thermostat
The 6iE Smart Wi-Fi Thermostat, controllable from a smartphone, tablet or computer, learns how the heating system is used and the unique way a home performs. It automatically suggests ways to save energy, for example what the temperature should be set to when you are not at home.
More information about the Warmup 6IE thermostat click here
MWCD5 WiFi OJ Electronics
OJ Microline WCD-5 WiFi thermostat controllable with your smartphone. Very advanced WiFi thermostat with programming options fully adjustable with your phone. The WCD-5 thermostat also allows you to view the power consumption of your underfloor heating. The thermostat is equipped with a frame set that fits standard Busch Jaeger switch frames. The WCD-5 thermostat makes it possible to switch your heating installation on preset times on any day of the week.
More information about the OCD5 Wifi thermostat click here
