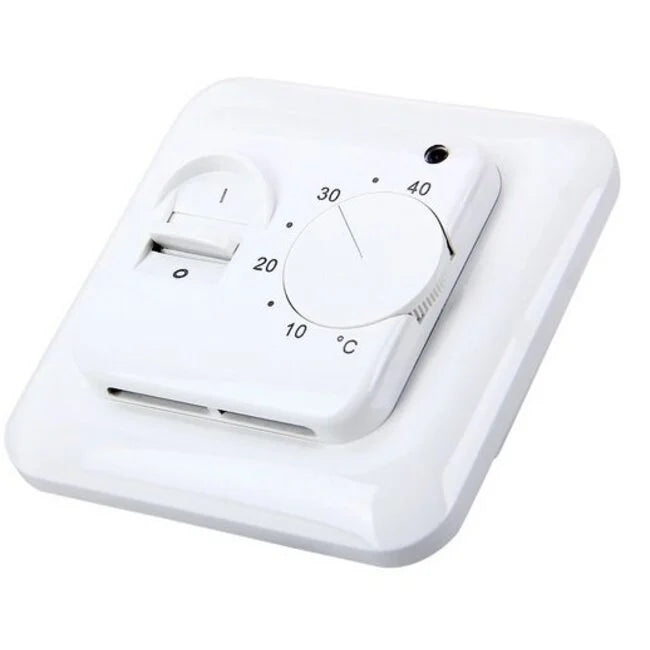

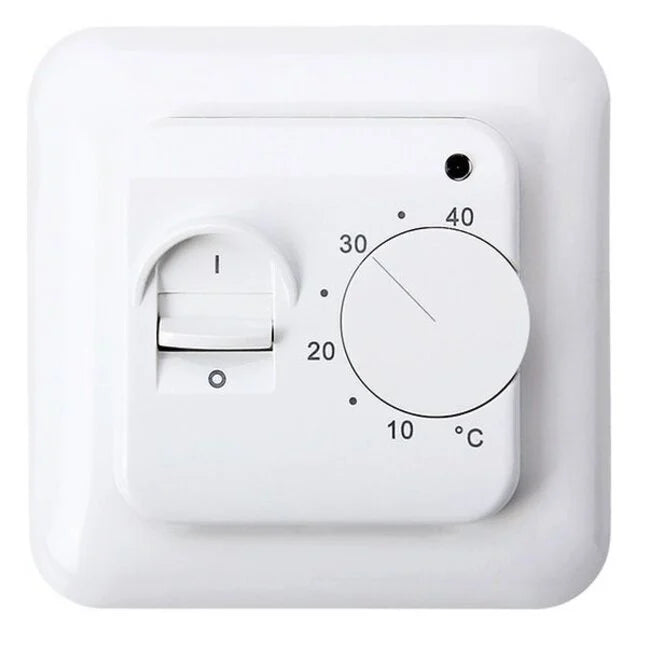

The QH 671 Manual Thermostat is a universally applicable electronic standard on/off thermostat with nighttime reduction, specifically designed for electric underfloor heating. The QH 671 is easy to operate thanks to its dial.
A simple yet highly accurate thermostat that takes into account the residual running time of the system. It switches the system on or off based on the set temperature. This ensures that the remaining heat in the system fully benefits the room being heated, without exceeding the desired temperature.
Technical Specifications:

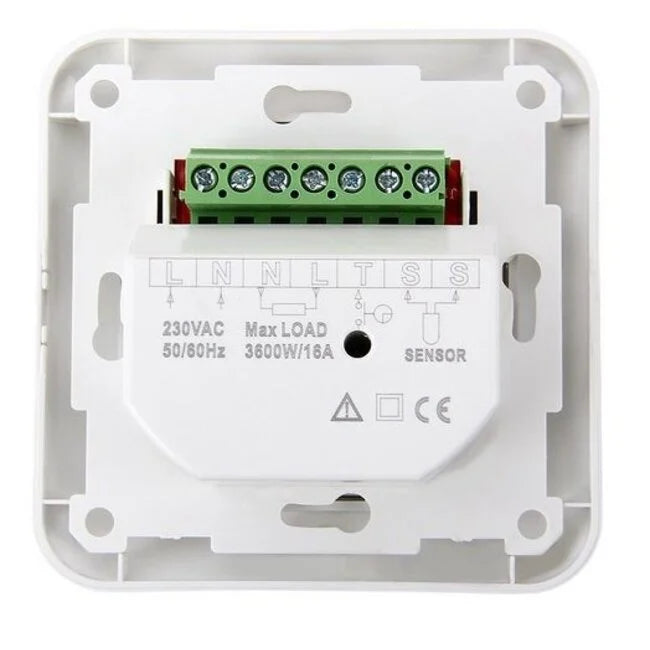

Power Supply: 230 VAC
Switching Voltage: 230 VAC - 16 Amps max
Floor Temperature Setting from 0 to 40°C
Fits in a standard flush-mounted box
Color: White
NTC Value: 20°C / 12kOhm
IP30

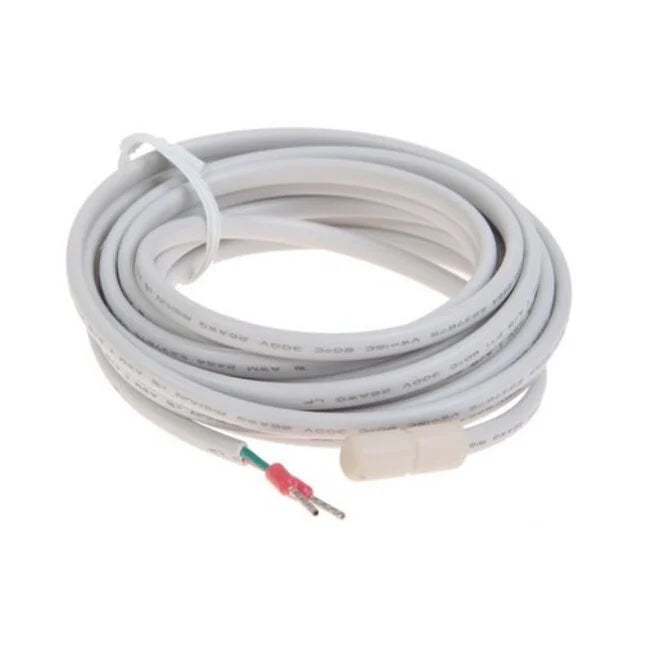

Includes a 3-meter floor sensor
Dimensions: 85x84x32mm
Warranty: 2 Years
