Quality Heating
100 cm - 120 Watt/m² foil set without thermostat
Ideal under laminate and parquet
Ultra-thin: only 0.3mm
Easy DIY installation
Select a thermostat
Choose the right thermostat for your underfloor heating
Delivery within 3 business days
Best price guarantee
Free shipping
Free and no-obligation advice
Free and no-obligation advice
Feel free to contact us via the customer service page. We are available Monday to Friday from 9:00 to 12:30 and from 13:00 to 17:00, and will be happy to assist you with personalised advice.
Download our Quality Heating app for free
Download our Quality Heating app for free
We have developed our Quality Heating app which allows you, if your product has Wi-Fi, to control it easily. Through the app you can, among other things, adjust the temperature and create heating schedules. The Quality Heating app is available in the App Store for iPhone (iOS) and for Android.
Professional or installer? Discover the benefits
Professional or installer? Discover the benefits
Do you regularly purchase electric heating as part of your profession or business? Then become a professional customer at Quality Heating and benefit from additional service for your clients and attractive professional advantages for yourself.
Do your business activities fall into one of the following categories? If so, you can apply for a professional order account with us: contractor, finishing, installer, electrician, e-commerce or architect.
Please include the following information with your request:
- Company name
- Registration number (CoC)
Send your request by email to info@qualityheating.nl.
Product specifications
Pros and cons
Description
Order your Quality Heating infrared underfloor heating foil easily online at Quality Heating underfloor heating. With an extensive range of products for electric underfloor heating systems, you can order the materials for your underfloor heating in our webshop. Ordered today will be delivered the next working day!

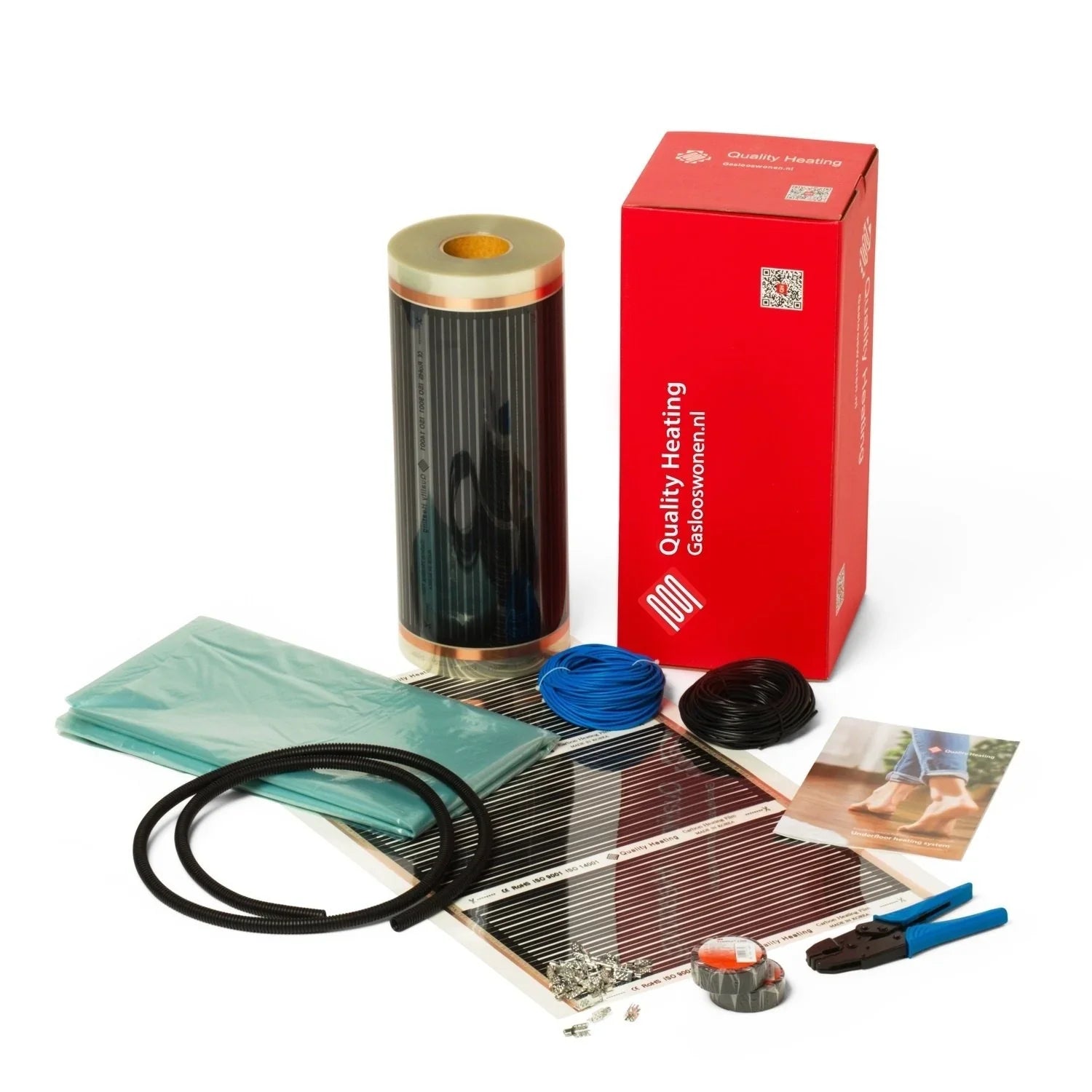

Contents of Quality Heating foil set
1 x Infrared heating foil. Choose the number of m² yourself; primary heating or as supplementary heating
1 x Floor sensor with flexible sensor tube
2 x PP tape
Shrink connectors (8 pieces) depending on the surface area.
Connection wires black and blue (2 x 10 meters)
Step-by-step installation instructions with telephone helpdesk
Required power
Every room requires a different power. If you want to heat a bedroom as the main heating source, we recommend a 120 Watt per m² system. Do you want to heat your living room with a total area of 40 m², net 36 m²? Then we also advise a 120 Watt per m² system. If you want to use the system as supplementary heating, we always recommend 80 Watt per m². For laminate, wood and parquet, the floor limit must be restricted to 28 degrees Celsius. Always check with the relevant floor supplier whether your floor finish is suitable in combination with underfloor heating. And check the specifications together with your system. Do you have any questions? Contact Quality Heating customer service via 072-808 0179 or info@qualityheating.nl.
No rights can be derived from the power required in this calculation. These are, where possible, based on practical tests and arithmetic approximations.
Thermostat control
From simple 'on/off' thermostats to advanced home automation thermostat controls, Quality Heating has them in its range. In the thermostat overview you can see all available thermostat controls. If you want a standard digital programmable thermostat, we recommend the PRF-78 in white or black (this is supplied as standard).
WiFi control
Do you have multiple rooms to heat? Then we recommend our in-house developed WiFi system, the PRF-79 or PRF-80. Changing the temperature, setting a program or timer — you can do everything easily and quickly with the Quality Heating app on your phone. Do you want to control your lighting, infrared panels or boiler remotely in the future (for example from the office)? This is also possible with the Quality Heating app. There are no costs associated with the app. More information.
If you have questions, contact Quality Heating customer service via 072-808 0179 or info@qualityheating.nl.
Additional information about underfloor heating foil

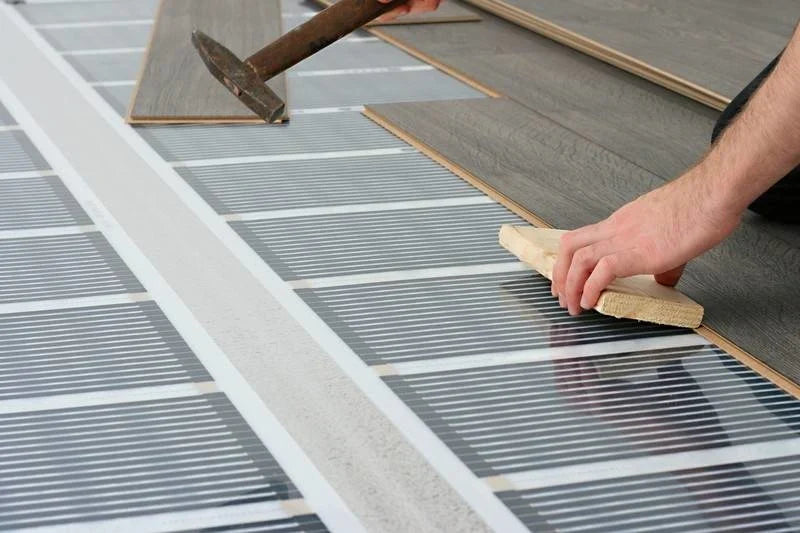

- Specially developed for under wood, laminate and parquet
- Ultra-thin: only 0.3 mm
- Easy installation and customer service available for technical support
- Easy to cut to size
- Energy-efficient thanks to the included touch smart control thermostat
- Choice of 4 different power ratings: 80 Watt per m², 100 Watt per m², 120 Watt per m² and 140 Watt per m²
- Width of 100 cm, multiple strips can be installed next to each other
- ISO-84 insulation developed for use under a foil system. Temperature resistant: max 70 °C
Quality Heating warranty
10 year warranty on the electrical functioning of the heating foil. 2 to 3 years warranty (depending on the type) on the thermostat and floor sensor.
Installation manual

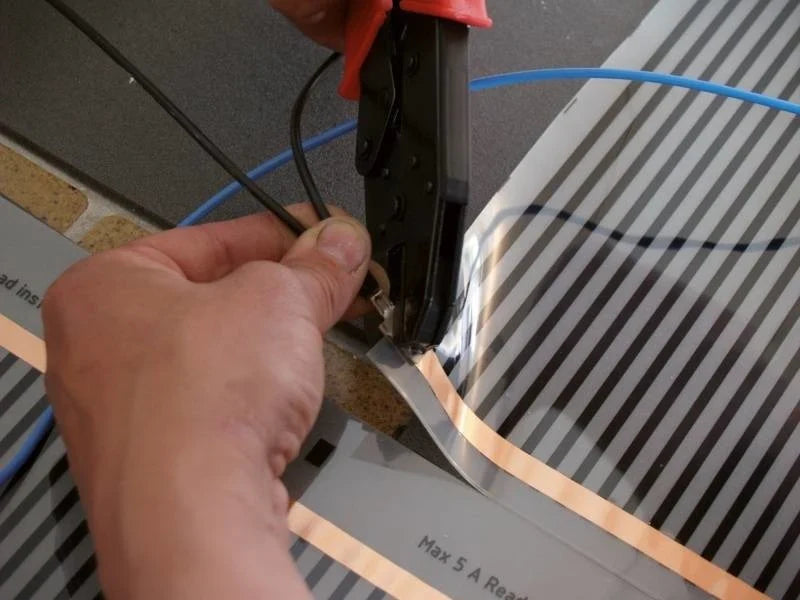

The infrared underfloor heating from Quality Heating is designed so that it can be installed easily.
To make it even easier for you, we have prepared an extensive instruction manual. You can download it by clicking on the image.
[break]Thermostat overview::
Manual QH 671 simple On/Off
The Manual thermostat QH 671 is a universally applicable electronic standard on/off thermostat with night setback specially for electric underfloor heating. The QH 671 is easy to operate thanks to its control knob.
A simple but extremely accurate thermostat that takes into account the system's residual heat. It switches the installation off or on based on the set temperature. This way the heat still in the system on its way is fully beneficial to the space to be heated, without exceeding the desired temperature.
More information about the Manual thermostat click here
PRF-78 white or black
The PRF-78 has a beautiful design with soft-touch buttons. The touch screen thermostat is a programmable room thermostat that can be connected to your electric underfloor heating. This thermostat has an attractive appearance and is one of the most advanced of its kind. The Soft Touch 7-Day Programmable thermostat comes with a 2-year factory warranty.
For more information about the PRF-78 click here.
PRF-79 Wifi
The user-friendly PRF-79 Wifi electric underfloor heating thermostat is controllable via the APP. This thermostat features a zone control system, countdown timer function, is programmable and fully controllable with the application. App available for iOS/Android: Quality Heating.
More information about the PRF-79 Wifi thermostat click here
PRF-80 Wifi
Wifi thermostat with a beautiful design. The PRF-80 Wifi electric underfloor heating thermostat is controllable with the app. This thermostat features a zone control system, countdown timer function, is programmable and fully controllable with the application. App available for iOS/Android: Quality Heating.
More information about the PRF-80 Wifi thermostat click here
V1 Pro Touch wifi design thermostat Black or White
The V1 Touch Wi‑Fi Thermostat, controllable from a smartphone, tablet or computer, learns how the heating system is used and the unique way a home performs. It automatically suggests ways to save energy, for example where the temperature should be set when you are not at home.
More information about the V1 thermostat click here
Heatit z-wave TRM3 home automation thermostat Black or White
Magnum Z-wave home automation thermostat from Heatit featuring the latest developments. This thermostat can be controlled with your smartphone or tablet. Fully 7-day programmable and available in white or black. Supplied including floor sensor and Dutch manual. Thermostat works with Sensio, Fibaro and Zipato home automation systems. This thermostat is supplied standard with a floor sensor.
More information about the Z‑wave thermostat click here
Wifi V3 thermostat with receiver
With the Wifi V3 thermostat with receiver, relay systems are a thing of the past! Because the thermostat is powered by 2 x AA batteries, it can be placed anywhere in the house and is wirelessly connected to the receiver. The receiver connects underfloor heating up to a maximum power of 3000 Watt. If you are going to apply more than 3000 Watt, you can easily expand the set with an additional receiver.
More information about the Wifi V3 thermostat with receiver click here
Warmup Element wifi thermostat Black or White
The Element WiFi thermostat combines smart technology with a simple, contemporary design and is the perfect all‑rounder to control Warmup heating systems.
The Element WiFi thermostat uses simple touch buttons for precise control of your underfloor heating system. The sleek, unobtrusive design fits into any interior.
The Element WiFi thermostat uses SmartGeo technology to learn the user’s routines; it automatically provides radiant heat at the right temperature at the right time. With the energy monitoring feature and the ability to control the thermostat remotely, using the Element with Warmup’s ‘MyHeating’ can reduce energy use by 25% and help save on the user’s energy bill.
More information about the Warmup Element thermostat click here
Warmup 6IE Wifi thermostat
The 6iE Smart Wi‑Fi Thermostat, controllable from a smartphone, tablet or computer, learns how the heating system is used and the unique way a house performs. It automatically suggests ways to save energy, for example where the temperature should be set when you are not at home.
More information about the Warmup 6IE thermostat click here
OCD5 busch jaeger and jung
OCD5 Busch Jaeger and Jung Unique built‑in 7‑day programmable thermostat with an adaptive self‑learning warm‑up (optimizer) control and a colour touch screen "Touch Screen". Can be set to multiple languages (NL, FR, DE and English) and fits perfectly into Busch Jaeger switchgear (also in other switchgear, GIRA and ELKO). Adaptive control and energy‑efficient warm‑up programs. Can control floor and room temperature or both.
More information about the OCD5 thermostat click here
MWCD5 Wifi OJ electronics
OJ Microline WCD5 Wifi thermostat controllable with your smartphone. Very advanced Wifi thermostat with program options fully adjustable with your phone. The WCD‑5 thermostat also allows you to view the power consumption of your underfloor heating. The underfloor heating thermostat is equipped with a frame set that fits the standard Busch Jaeger switchgear. The WCD‑5 thermostat ensures it is possible to switch your heating installation on at predetermined times on any day of the week.
More information about the OCD5 Wifi thermostat click here
