100 Watt Mat without Thermostat

Quality Heating electric underfloor heating mats provide reliable and efficient heating for your tiled floors. Our heating mats are also suitable for various other floor finishes. (Installation methods vary; you can call us for tailored advice).

Each Quality Heating underfloor heating mat is supplied with a lifetime warranty*.

Do you have questions before or during the installation of our products? Quality Heating always provides suitable technical support for every situation. Quality Heating underfloor heating sets are 100% complete and ready to use. Our packages include all materials you need to install underfloor heating in your home (+ comprehensive instruction manual).

Select the desired power/area** in the above selection table, next to the photo. The price will automatically adjust and be displayed.

*Note: lifetime warranty applies only to Quality Heating products. For products from other brands, the warranty conditions of the respective manufacturer apply.

**Choose an electric underfloor heating set that covers 90% of your floor area. It is better to order a few centimeters less than to overestimate, since the cables cannot be cut or shortened.

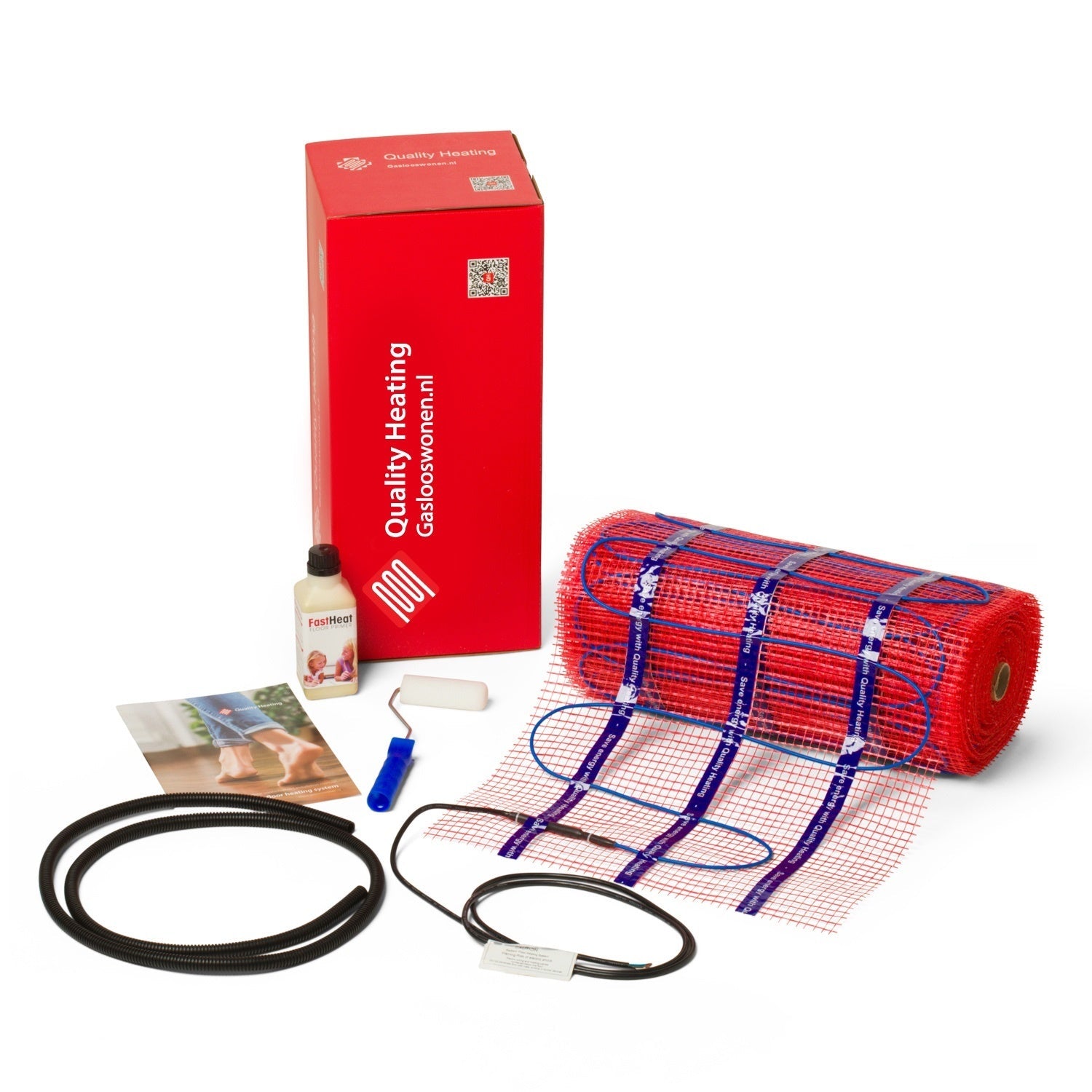

Electric underfloor heating set includes the following components:

Quality Heating underfloor heating mat (or 2 mats if over 12 m2)

The Quality Heating mat is approx. 2.9 mm thin and can be integrated directly into the adhesive layer.
The ultra-thin cable ensures the lowest possible build-up height.
Quality Heating cable contains insulation made of 100% PTFE (Teflon) and no PVC.

FastHeat floor primer / primer coat

The floor primer has been a sales hit in the United Kingdom for years. Quality Heating is the first supplier to introduce this great product to the Dutch consumer. The FastHeat Floor Primer from Quality Heating ensures optimal heat transfer, resulting in lower energy consumption. The primer helps keep moisture out of the system and is suitable for various substrates, such as gypsum, wood and tiles.

The FastHeat Floor Primer is offered to you free as a supplement in your chosen underfloor heating set.

Roller

For easy application of the primer to the subfloor.

Specifications

You receive a lifetime warranty on the Quality Heating mat. See below the advantages of the Quality Heating mat:

• No chiseling, breaking or milling work required;
• Can be applied directly into tile adhesive or leveling compound;
• Efficient and energy-saving control;
• Maintenance-free heating;
• Low purchase costs;
• The solution for underfloor heating when there is limited build-up height;
• Faster warm-up time thanks to the included primer;
• Comfort;
• Can be used as primary heating or supplementary heating;
• VDE approved;
• Customer service available for all your questions. Quality Heating mat is produced to be easily installed;
• Suitable for all subfloors.

Installation

All products and manuals can be downloaded here. For technical questions before or during installation you can contact one of our heating advisors by phone.

Quality Heating's electric underfloor heating is designed to be installed easily.

Tips;

1. Measure the total area of the space to be heated - deduct 20 cm from the edge and do not place under toilets, fixed floor-mounted furniture or under shower trays. For a heating area of e.g. 3.8 m2, choose a 3.5 m2 mat set.
2. The Quality Heating mat sets have a width of 50 cm. With a mat of, for example, 3.5 m2 you will receive a mat 7 meters long and 50 cm wide. The individual strips can be placed next to each other. You can cut the mesh of the mat yourself to create curves. Never cut the cable of the mat to shorten it.
3. If you have a wooden subfloor, you are required to use the ISO-64 insulation boards. The included FastHeat accelerates the warm-up of the underfloor heating. The primer can also be used as a primer coat for the leveling compound.
4. Place the floor sensor in a separate conduit. The sensor must come out between the cables of the underfloor heating for a correct measurement. Once the mats are placed, you can tile directly over them or spread a layer of leveling compound over the mats. Manuals can be downloaded here.

• Main product
• User manual
• Power cable
• Optional mounting materials
