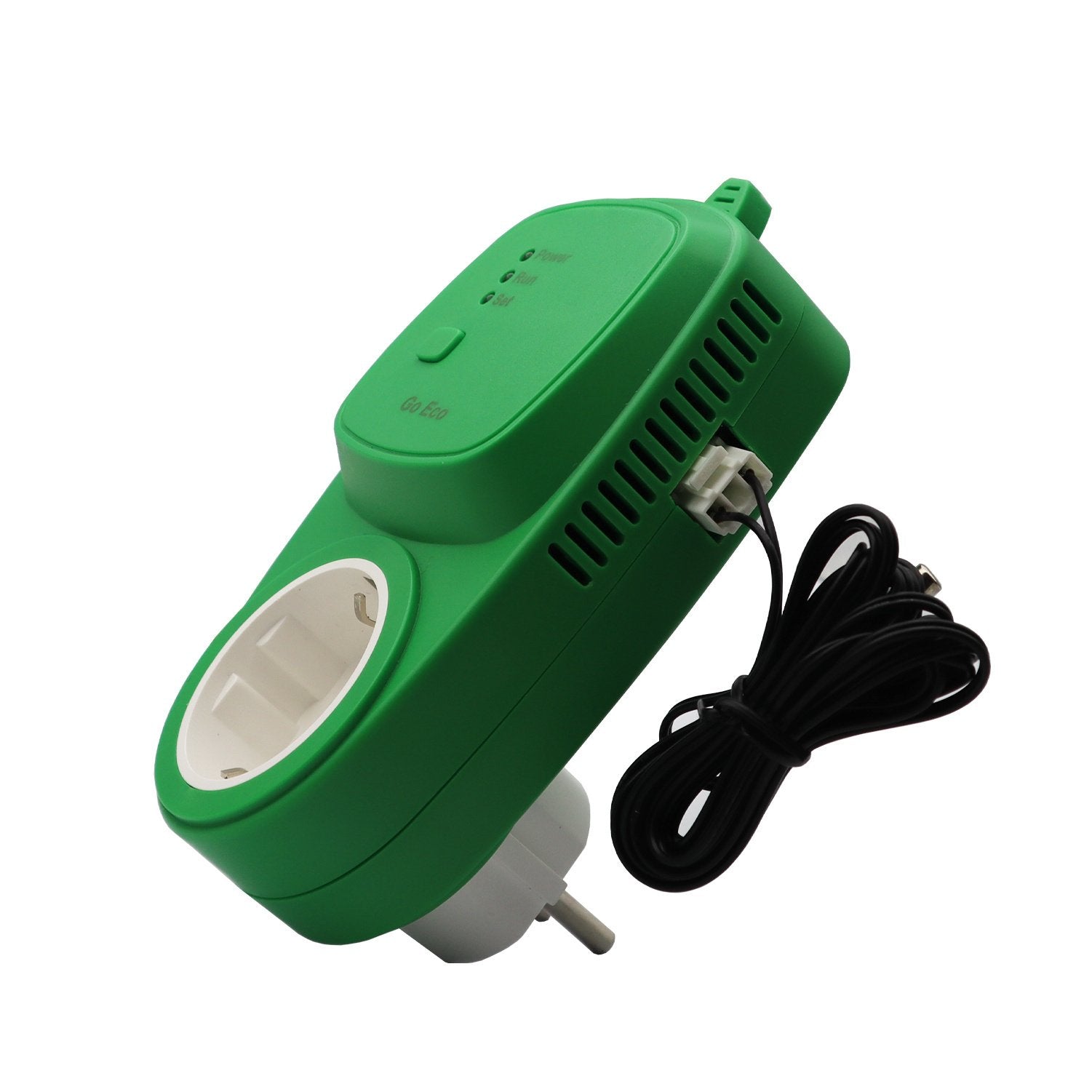

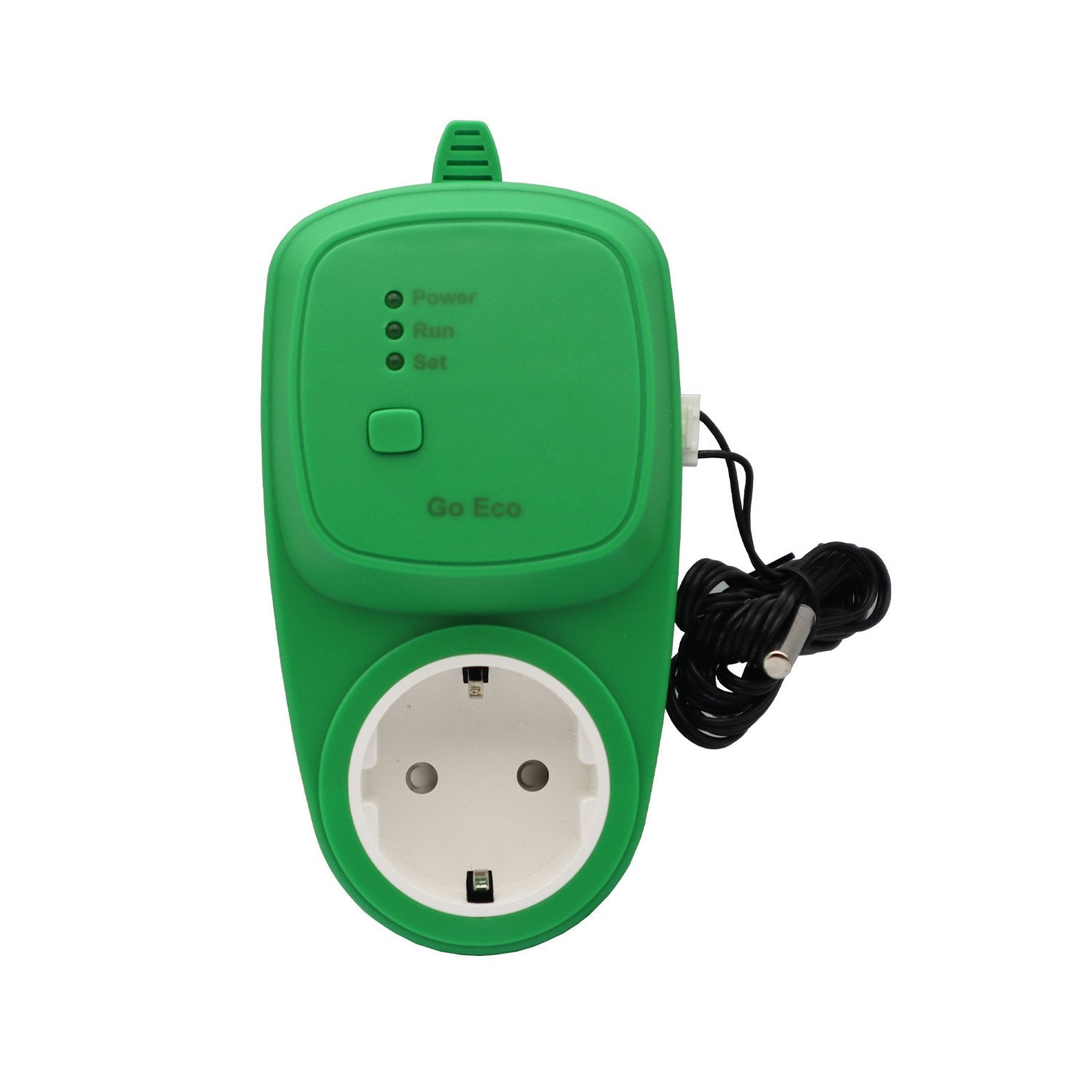

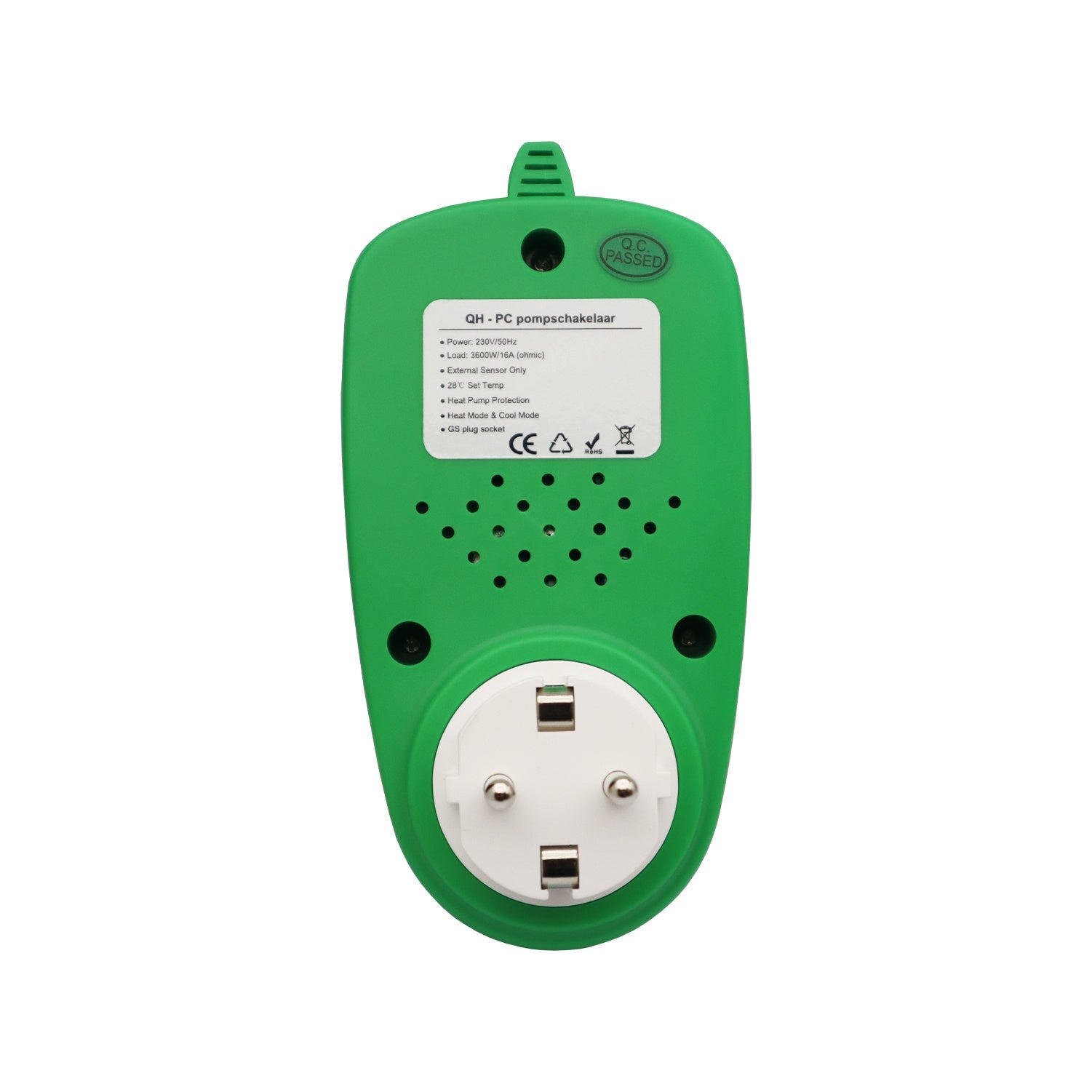

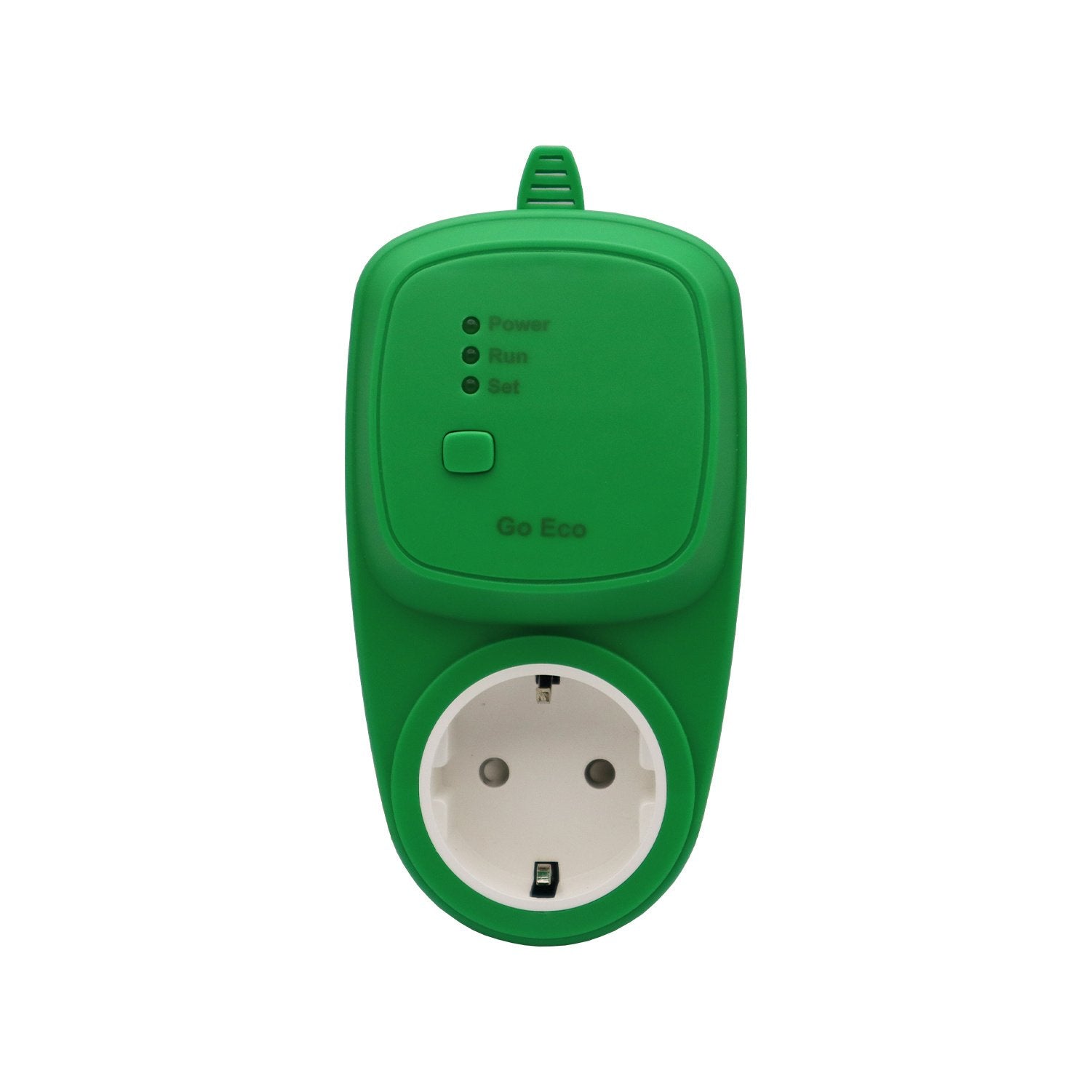

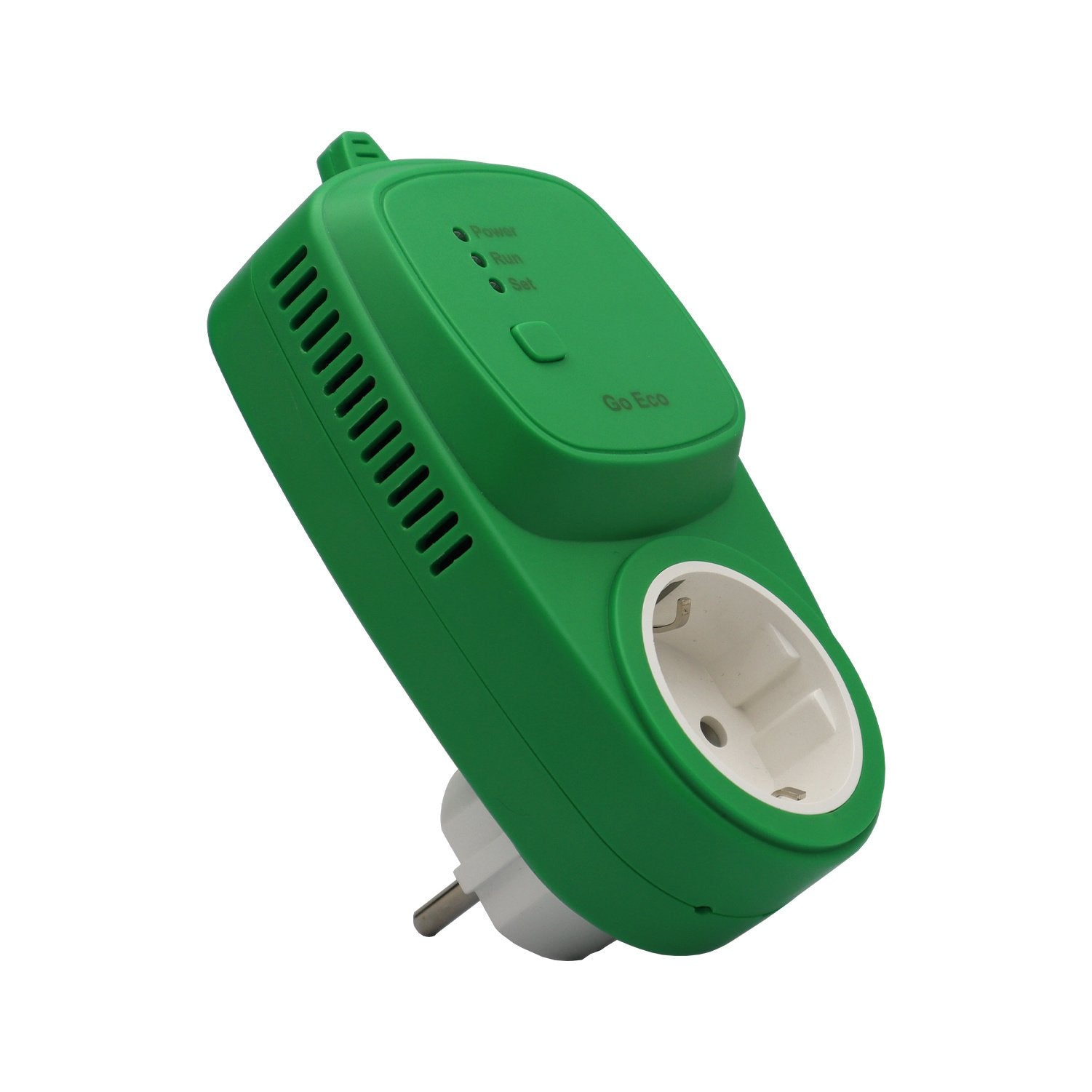

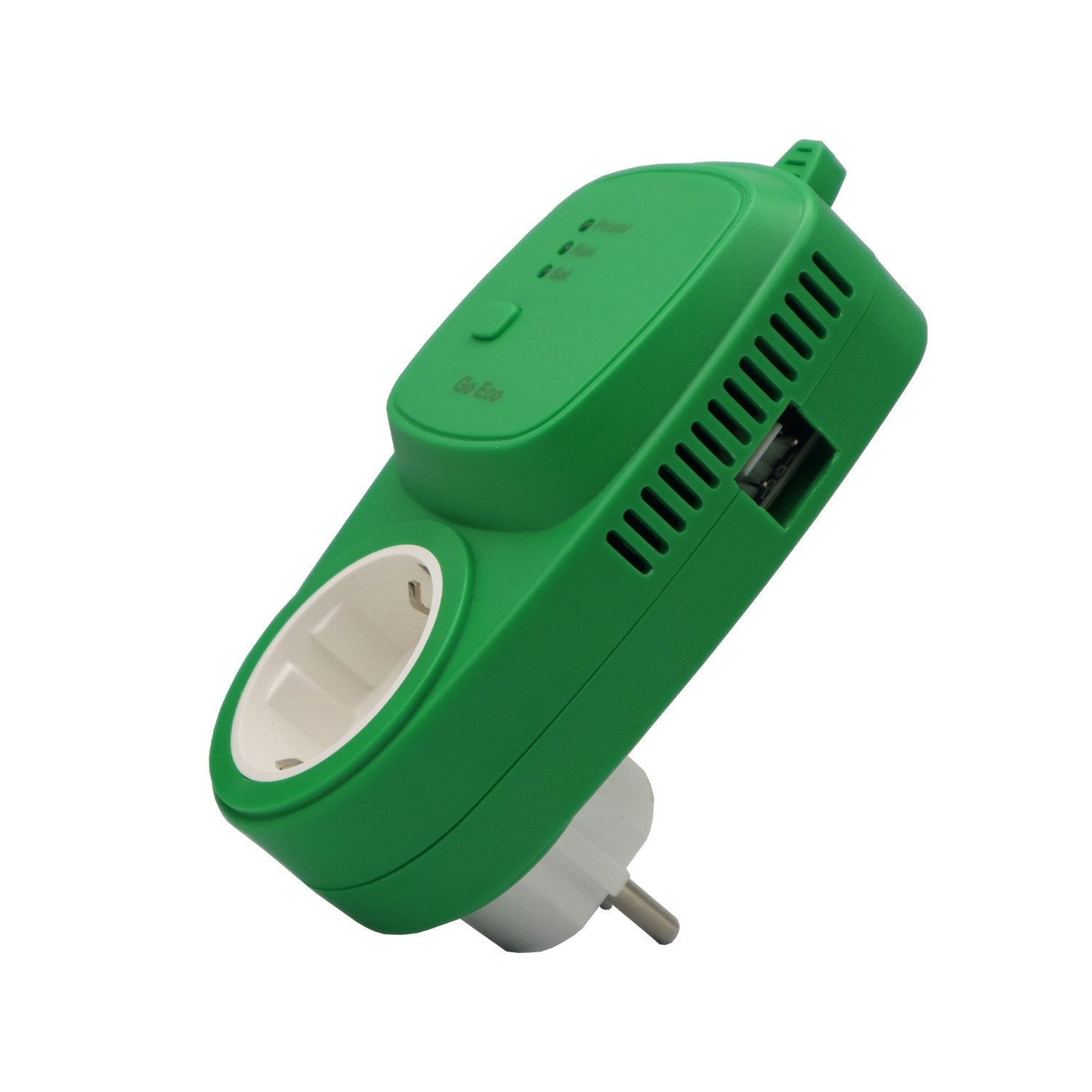

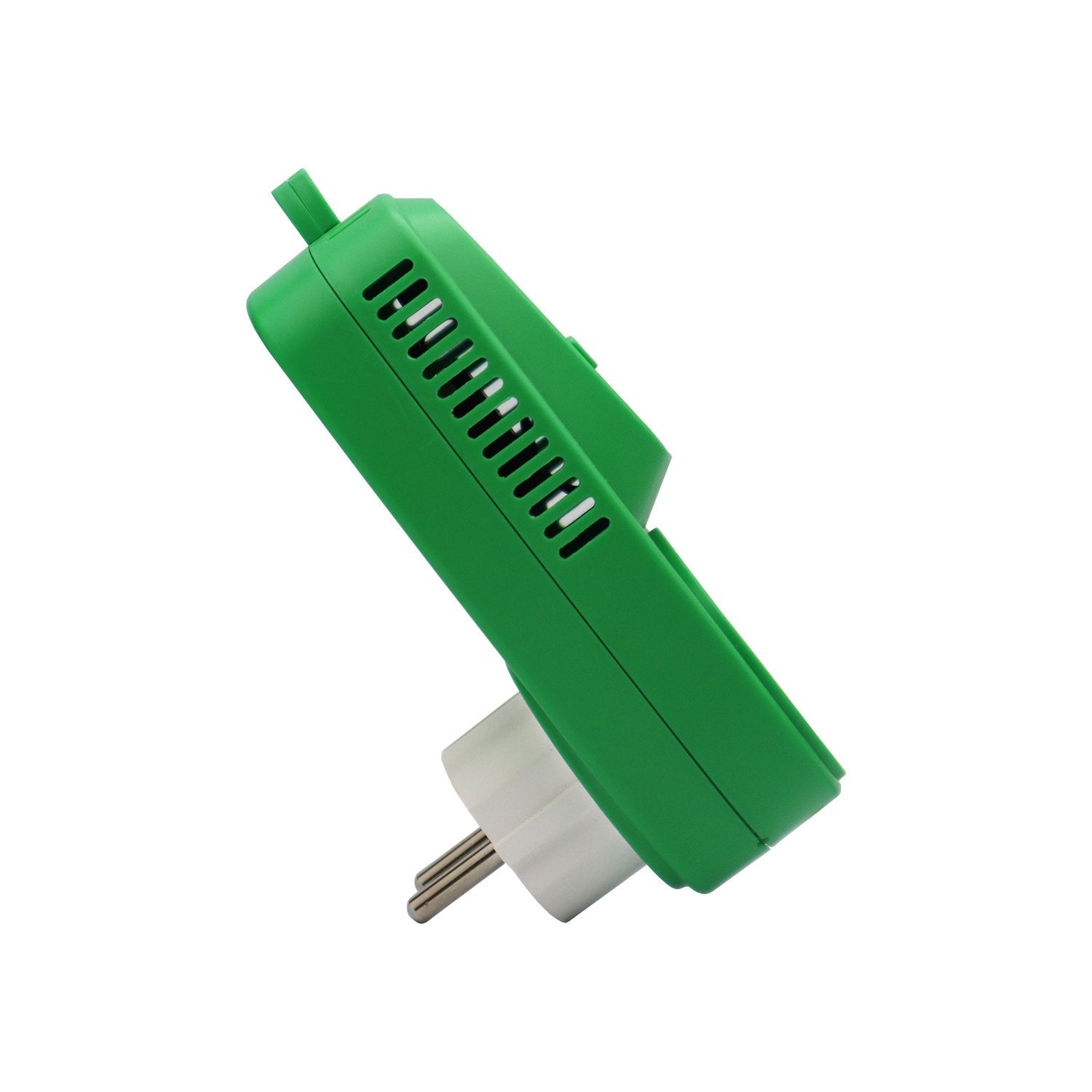

Pump Switch for Underfloor Heating

The pump switch for underfloor heating reduces your energy costs.

Using the Quality Heating underfloor heating pump switch ensures that it doesn't run unnecessarily 24 hours a day, 365 days a year. At first glance, this may not seem like much, but it is when you receive your electricity bill in the mail! Therefore, by using an underfloor heating pump switch, in practice it is possible to save an average of 109 euros per year. Needless to say, this makes the use of underfloor heating in your home even more attractive.

The savings depend on the type of pump

By using a pump switch or underfloor heating thermostat, you can already save 500 KwH per year with a 90-watt pump. This corresponds to a saving of 109 euros. Is it a larger pump? Then the savings can increase even more. So you can save even more money with an underfloor heating pump switch.

Easy installation of the pump switch

Another advantage of this underfloor heating pump switch is that it can be installed very easily. All you have to do is connect the pump switch to the wall outlet and plug the manifold plug into the pump switch. With the Quality Heating pump switch, a sensor is supplied as standard. You should attach it to the supply pipe. To do this, you can use adhesive tape or a cable tie.

Temperature adjustment

Both the on and off temperatures are set as standard at 28 °C.

Technical data

Supply voltage / output: 230 Vca (+10% / -15%) 50/60 Hz
Automatic 24-hour circulation 1min to prevent pump from sticking (24-hour cycle). Already activated by default.
Relay switching contact: 230 Vca. 50/60 Hz
Sensor version: Clipsensor 2m 100k
Humidity limit: 5-95% (non-condensing)

Warranty
2 years warranty from date of purchase

The Quality Heating pump switch is designed for easy installation. Plug the switch into a standard wall outlet and insert the manifold plug into the pump switch. And turn on the switch. No further adjustments will be necessary.
