Quality Heating - Series QH-W - Set - Zone Control underfloor heating - Wireless Control - Thermostat

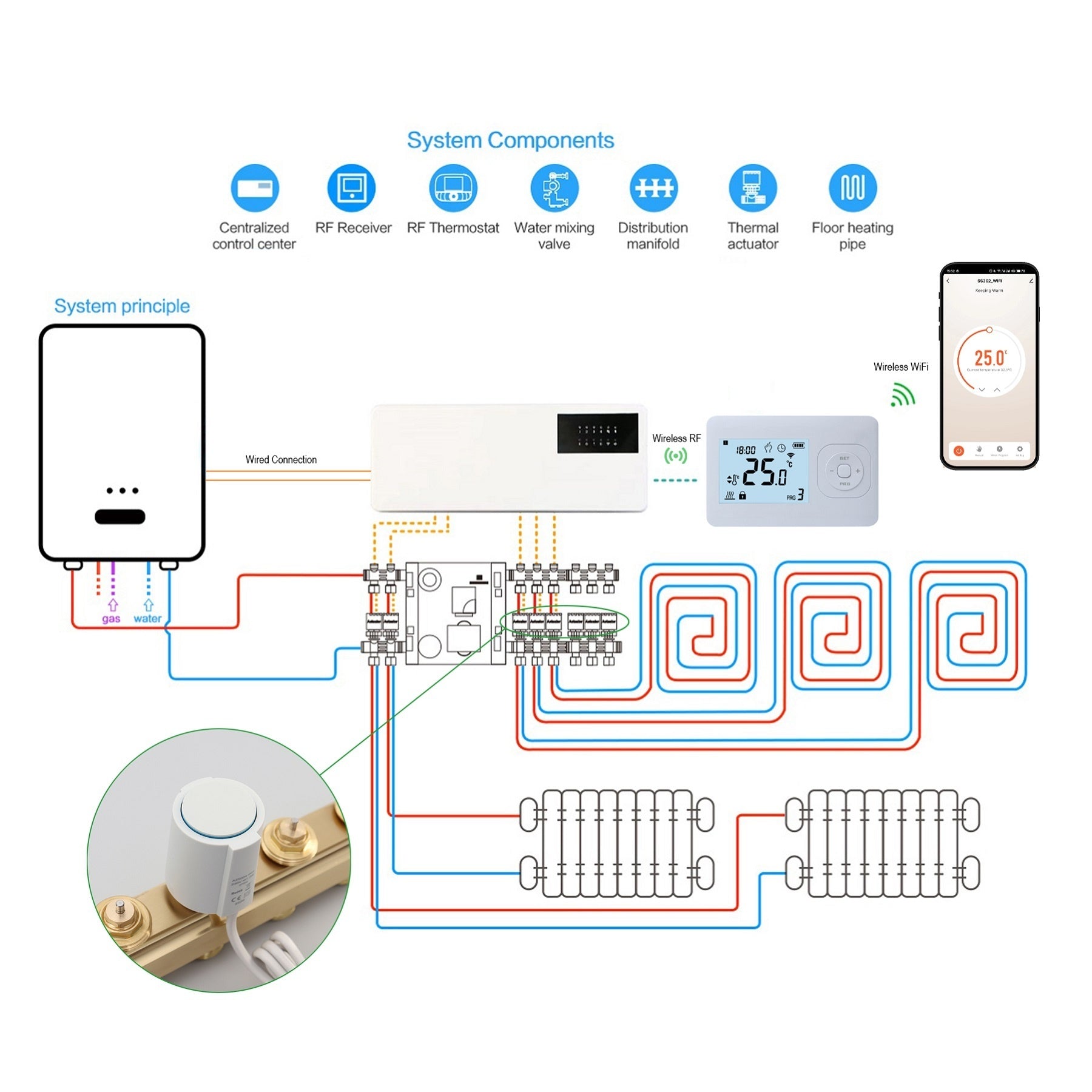

The Quality Heating zone control system has been developed for water-based underfloor heating systems.

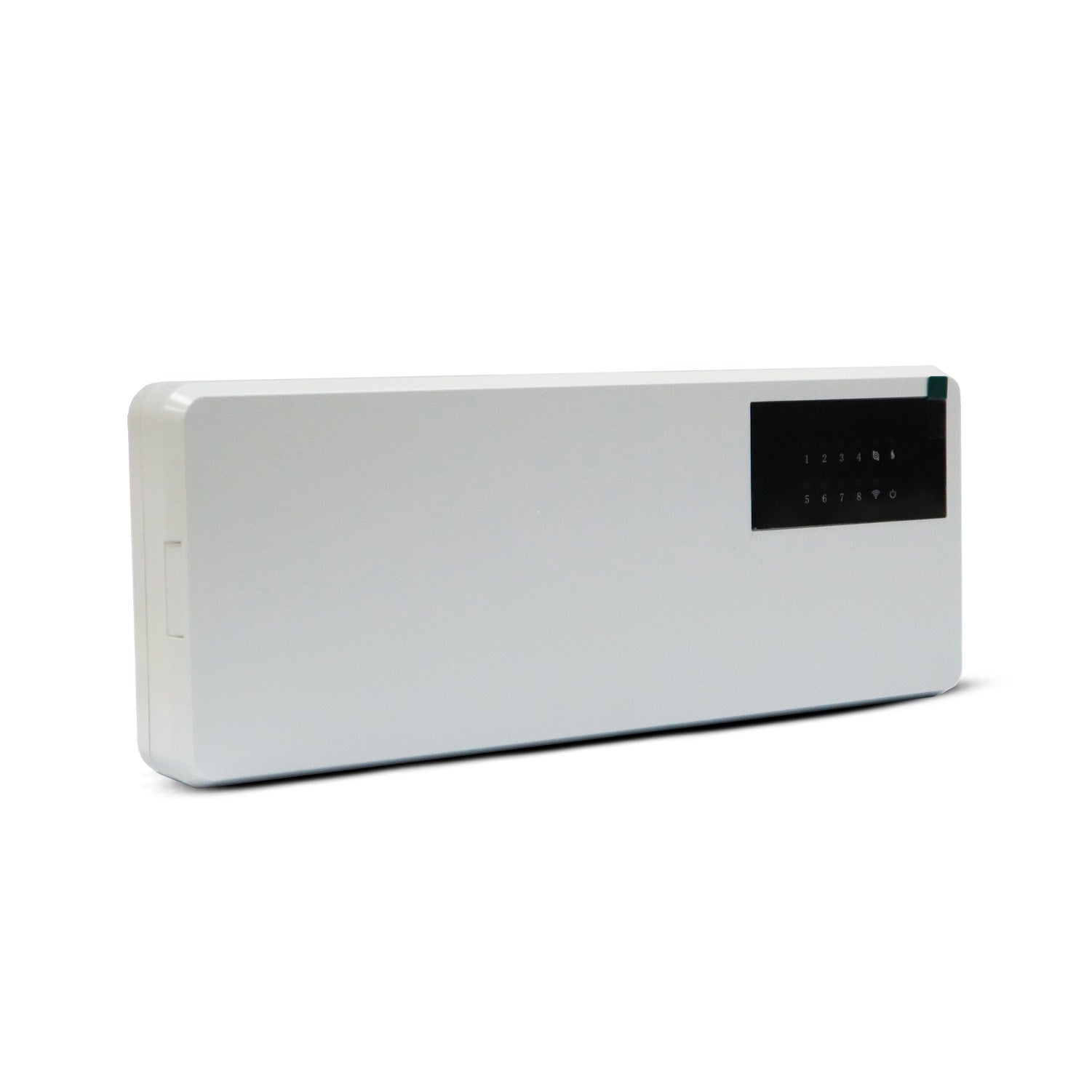

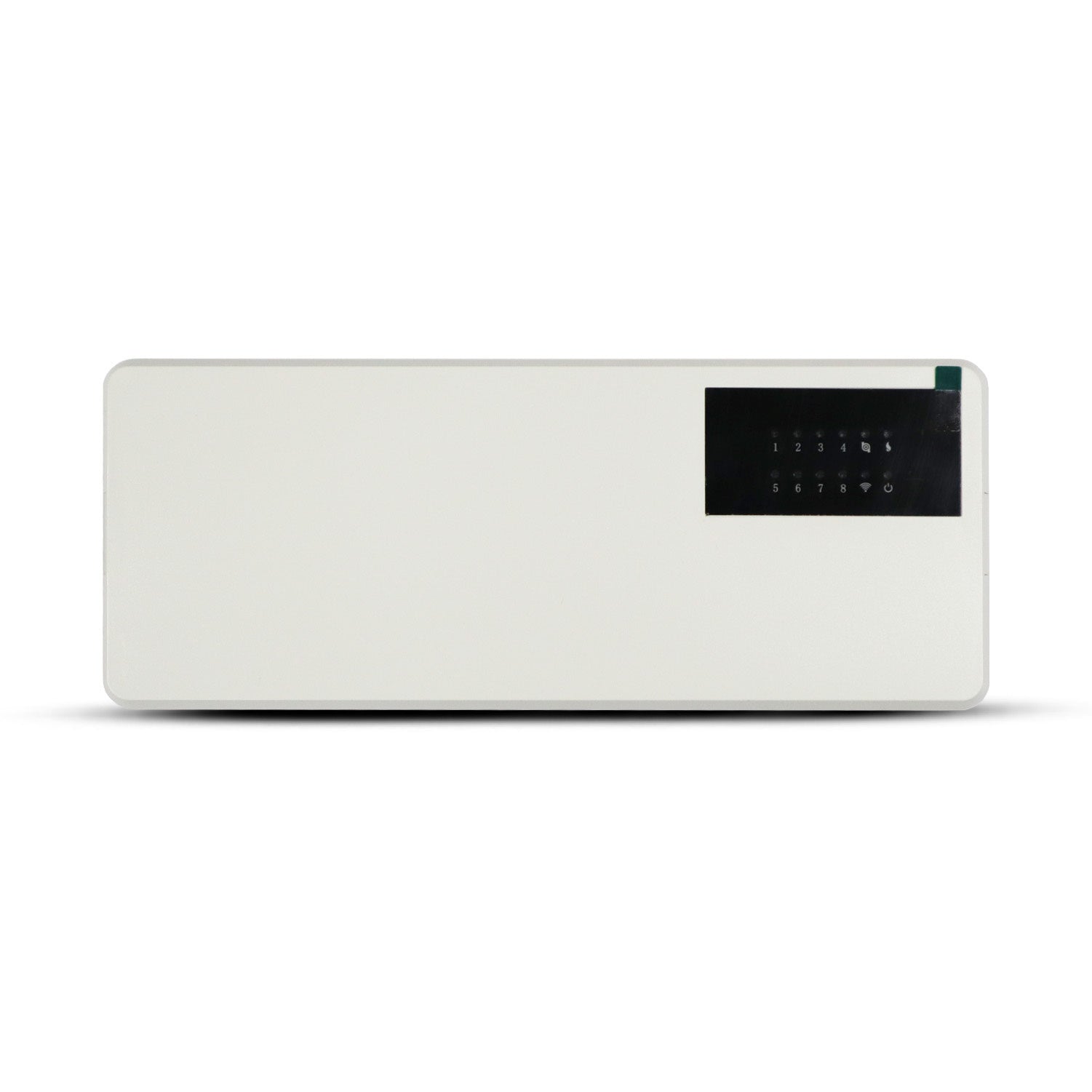

With the central box unit of this system, you can start adjusting a room temperature or program per room (a maximum of 8 rooms can be controlled).

The actuators must be connected to the underfloor heating manifolds. The actuators are connected to the central box unit via the supplied cable. The actuator will switch on when there is a heat demand for the room in question. Hot water will then flow through the pipes, and when the desired temperature is reached, it will also switch off.

Thermostat Design

A thermostat control must be installed in each room. This thermostat has 2 AAA batteries and is wirelessly connected to the central box. The thermostat measures the room temperature and sends this signal to the central box. You can adjust the temperature or program via your smartphone or locally through the thermostat control itself.

Actuator

The QH-W actuator is a simple shut-off motor used to automatically turn zones on the underfloor heating manifold on or off. Depending on the floor surface area, you can choose to install multiple actuators for one zone.

Technical Specifications

• Connect up to 8 rooms (8 thermostats) to the central box
• The central box output is 5Volt
• 24-hour pump protection
• Potential-free contact for On/Off boilers
• Maximum wireless connection of 30 meters from thermostat to central box RF version
• Connection of up to 3 actuators per zone

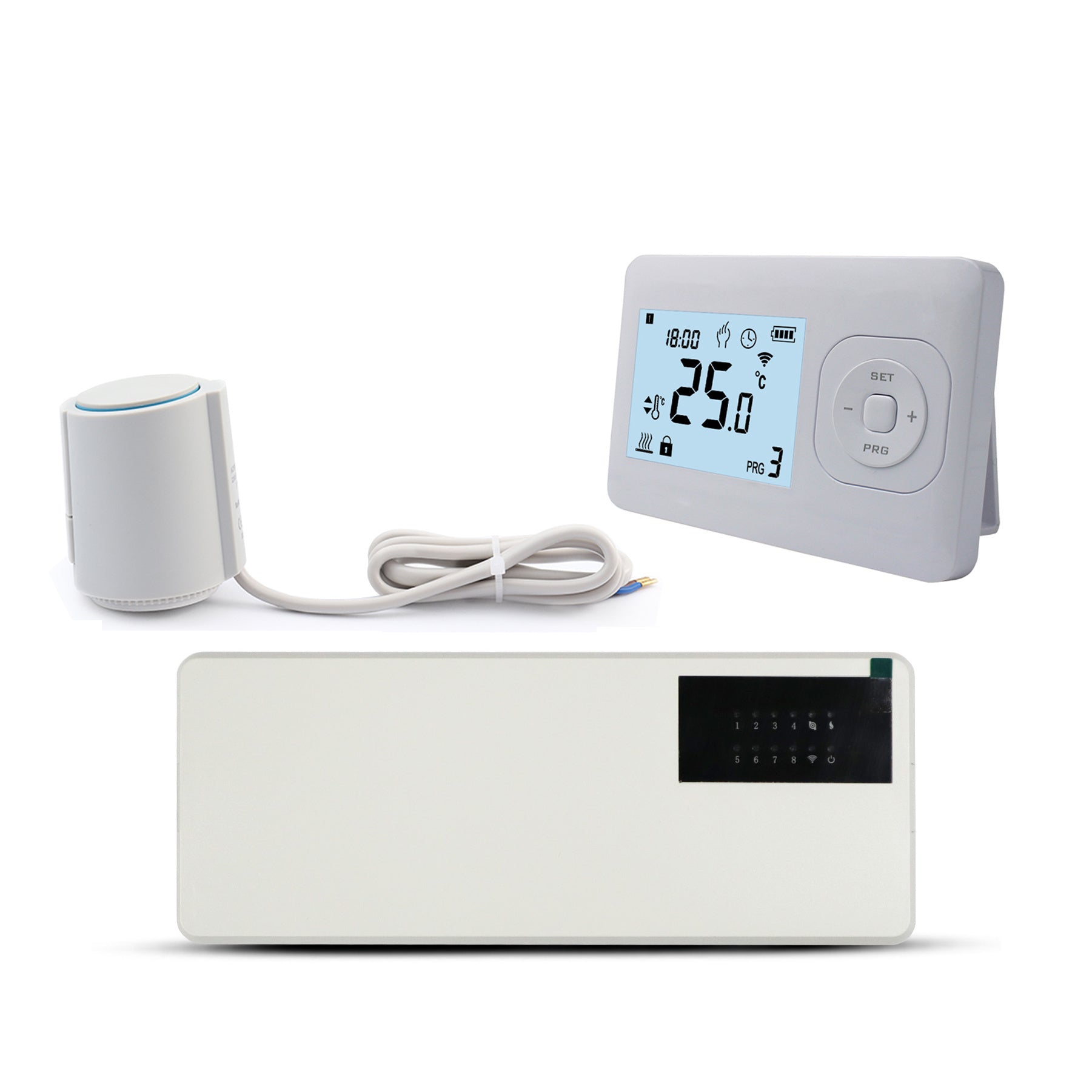

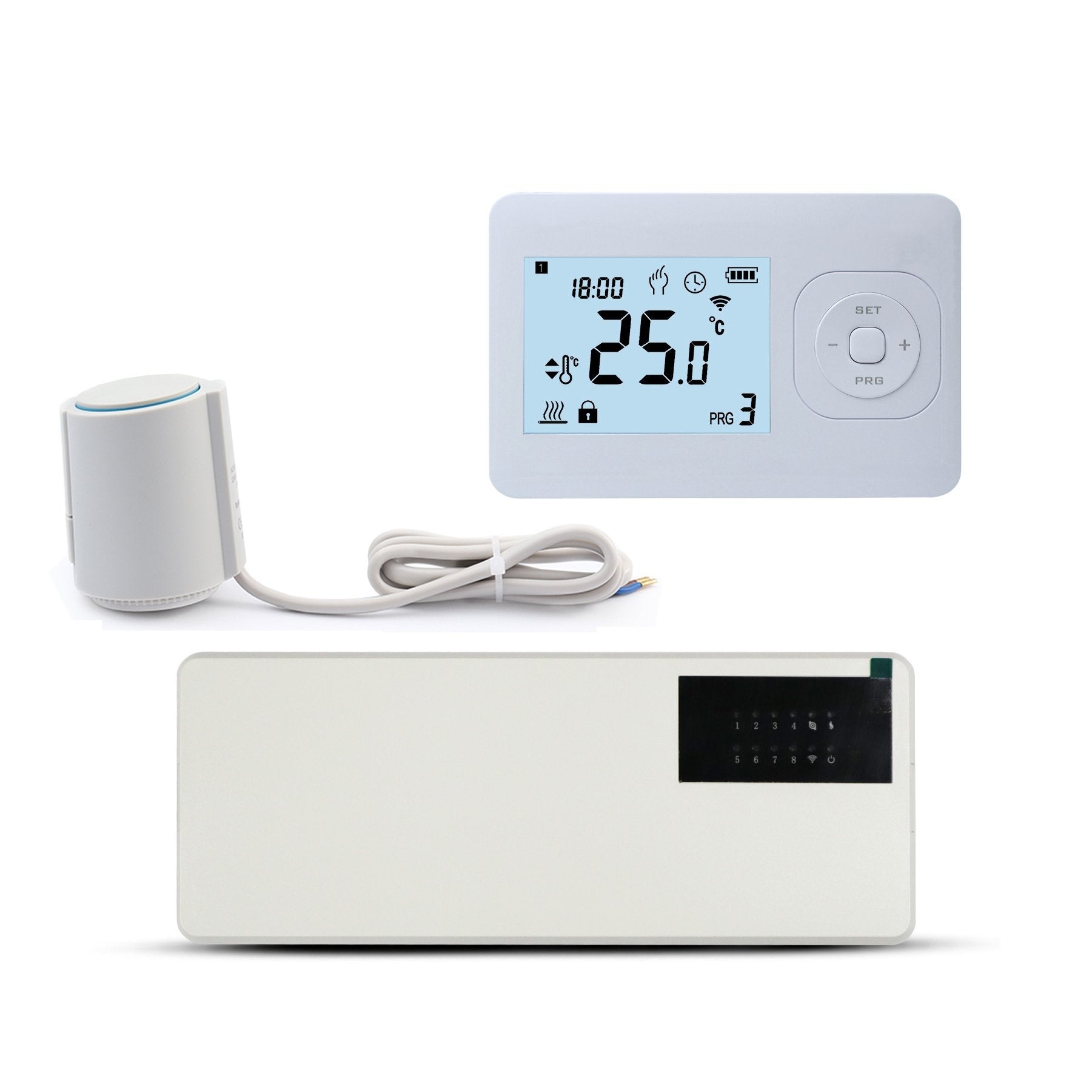

Supplied with

• 1 wireless thermostat
• 1 Actuator
• Main zone control unit

Separate units can be easily ordered on our website.
