Thermostat White WiFi QH-Basic with Recessed Receiver

Fully controllable with your smartphone, that's the QH basic thermostat control with WiFi receiver. It can be used as a standalone thermostat or wall-mounted thanks to the included mounting bracket. As standard, the thermostat comes with the integrated mini WiFi receiver. With multiple panels, we recommend multiple receivers. The panel connects to the WiFi receiver which wirelessly links to the thermostat. The thermostat is supplied with 2 AAA batteries. Through your mobile phone or the thermostat, you can easily configure the complete program, countdown timer, and in the case of multiple rooms, assign each room an independent zone name and set the corresponding temperature. Download the Quality Heating app for free on iOS or Google Play Store.

Example situation 1) If you want to heat a room with 3 panels, you will need one QH basic WiFi set and 2 additional independent WiFi recessed receivers.

Example situation 2) If you have multiple rooms you want to heat, we recommend 1 thermostat control for each room and 1 receiver per panel.

App Download

• Android google play
• IOS iphone

Supplied as a set

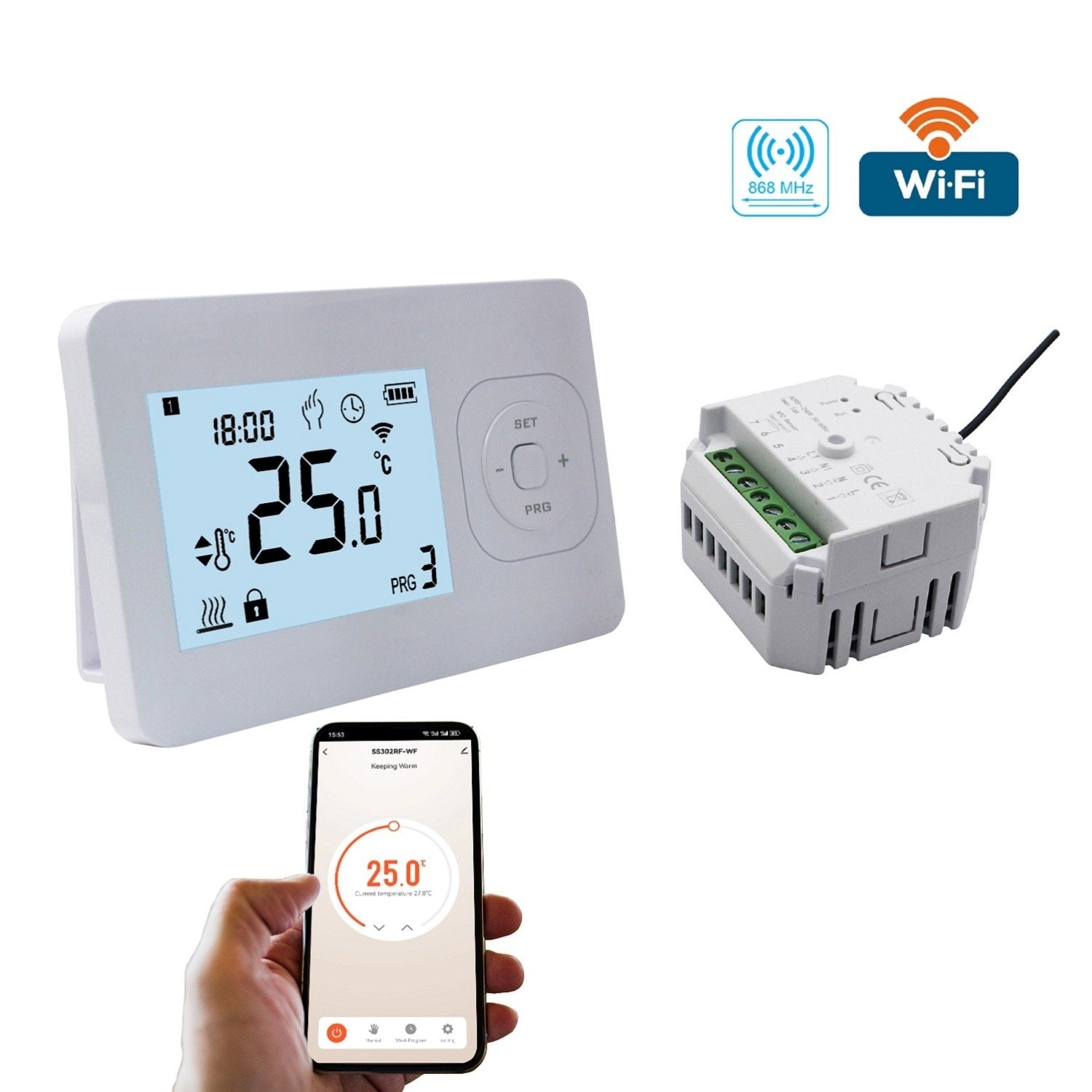

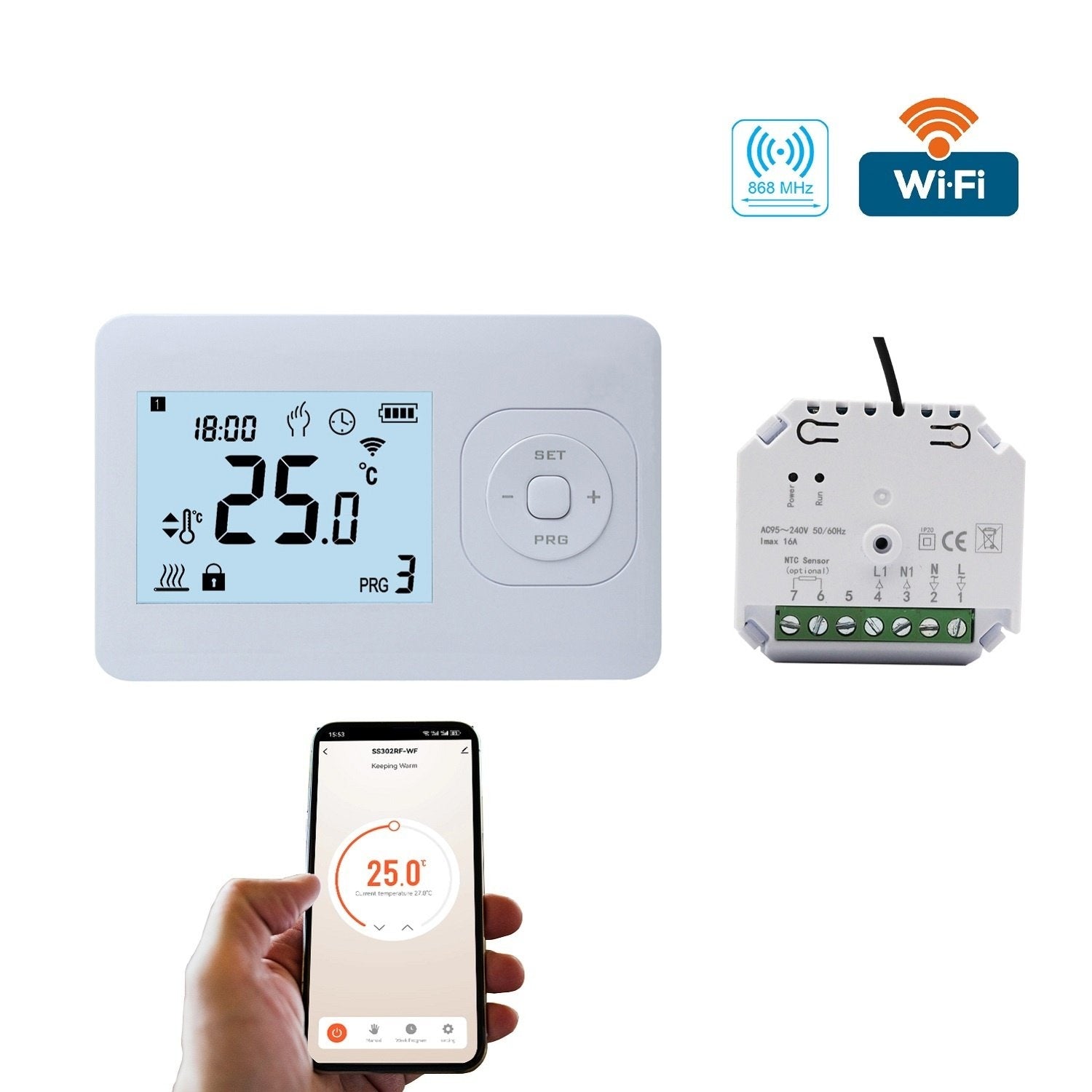

- Wireless thermostat with wall mounting bracket.

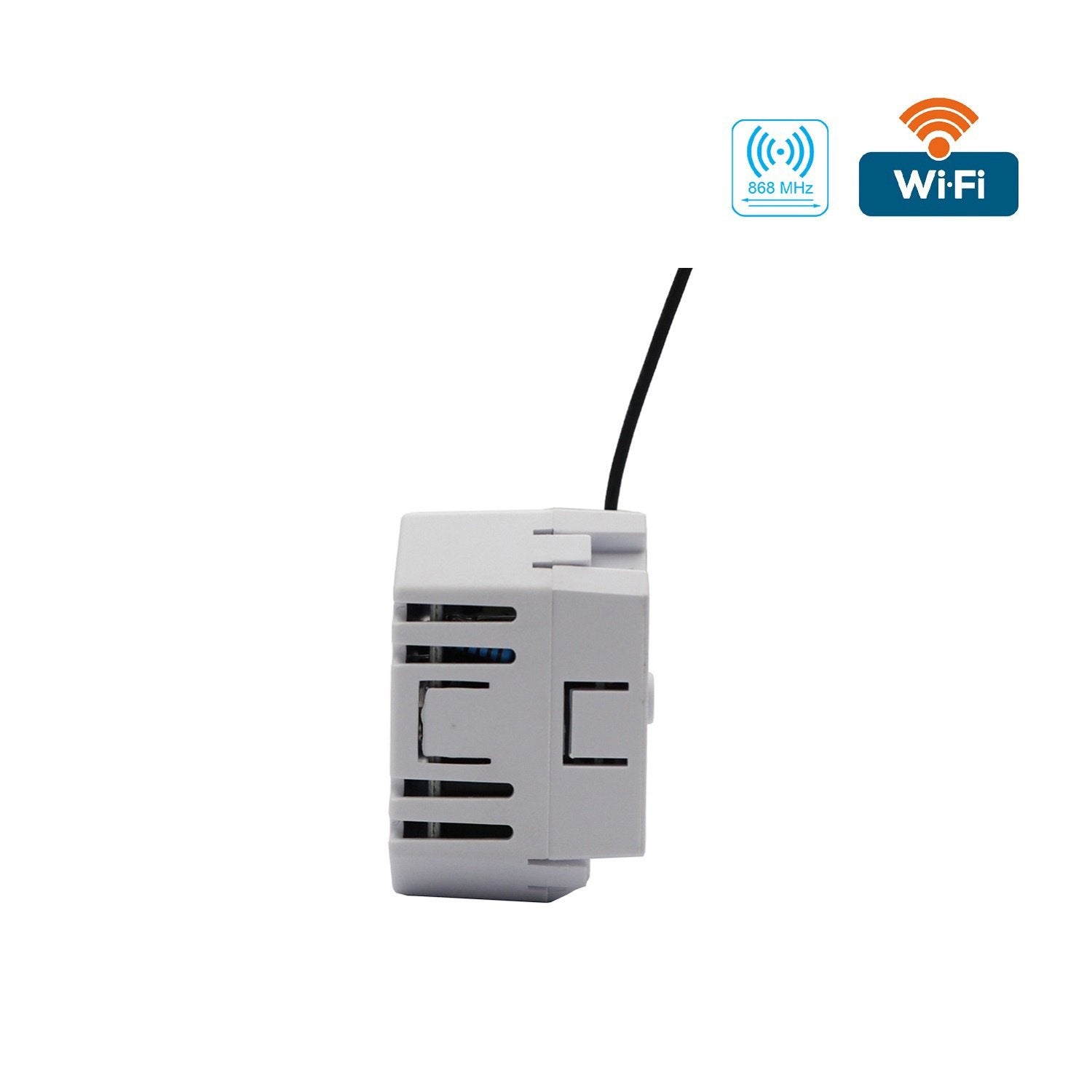

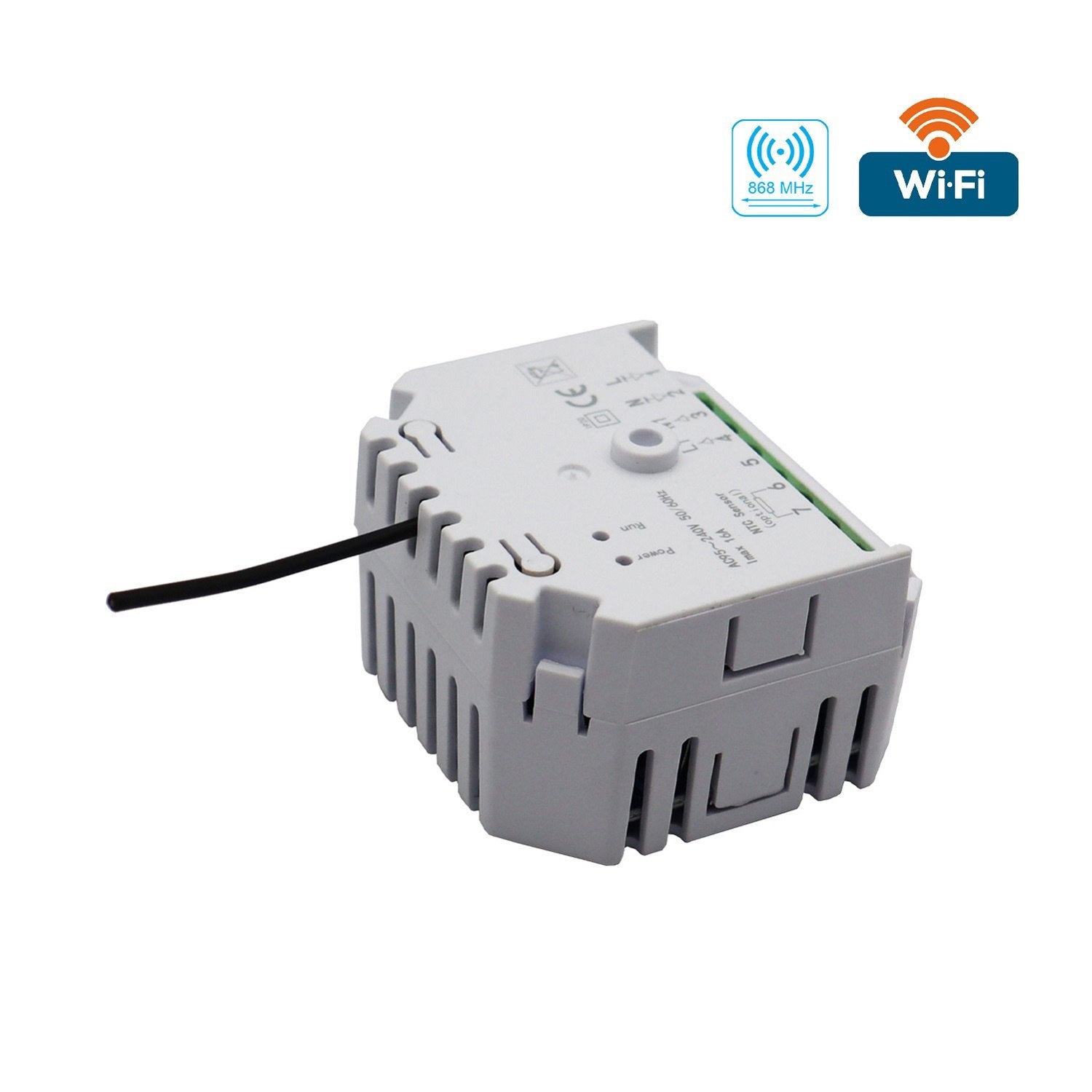

- Comes with built-in WiFi receiver 16 Amp 3600Watt

Applications
- Infrared heating panels, also for connecting multiple panels to one thermostat.
- Electric convector heaters, heaters, etc.

Technical Data

Receiver input/output voltage: 230Vac, 50Hz / potential-free contact (NO/NC), maximum 16A/230VIPRating: 23 Thermostat power supply: BatteriesFunctionSettings:



Yes, via pushbuttonsTemperatureSetting: 5 ~ 30°C ambient sensorBacklight / backlighting: yesTemperatureMeasurement: ambientFrequency: 868MHZ and WiFiDimensions:


134x94x28mmDisplaySize: 69 x 49mmReceiverSize: 45 x 45 x 23 mmReceiverType: recessed and surface-mountColor: whiteCertification: CE, EN, EMC (according to ISO9001 and 9002)Warranty: 2 years

[Files]

Documents

Thermostat - Manual

Documents

Pairing Instructions Video
