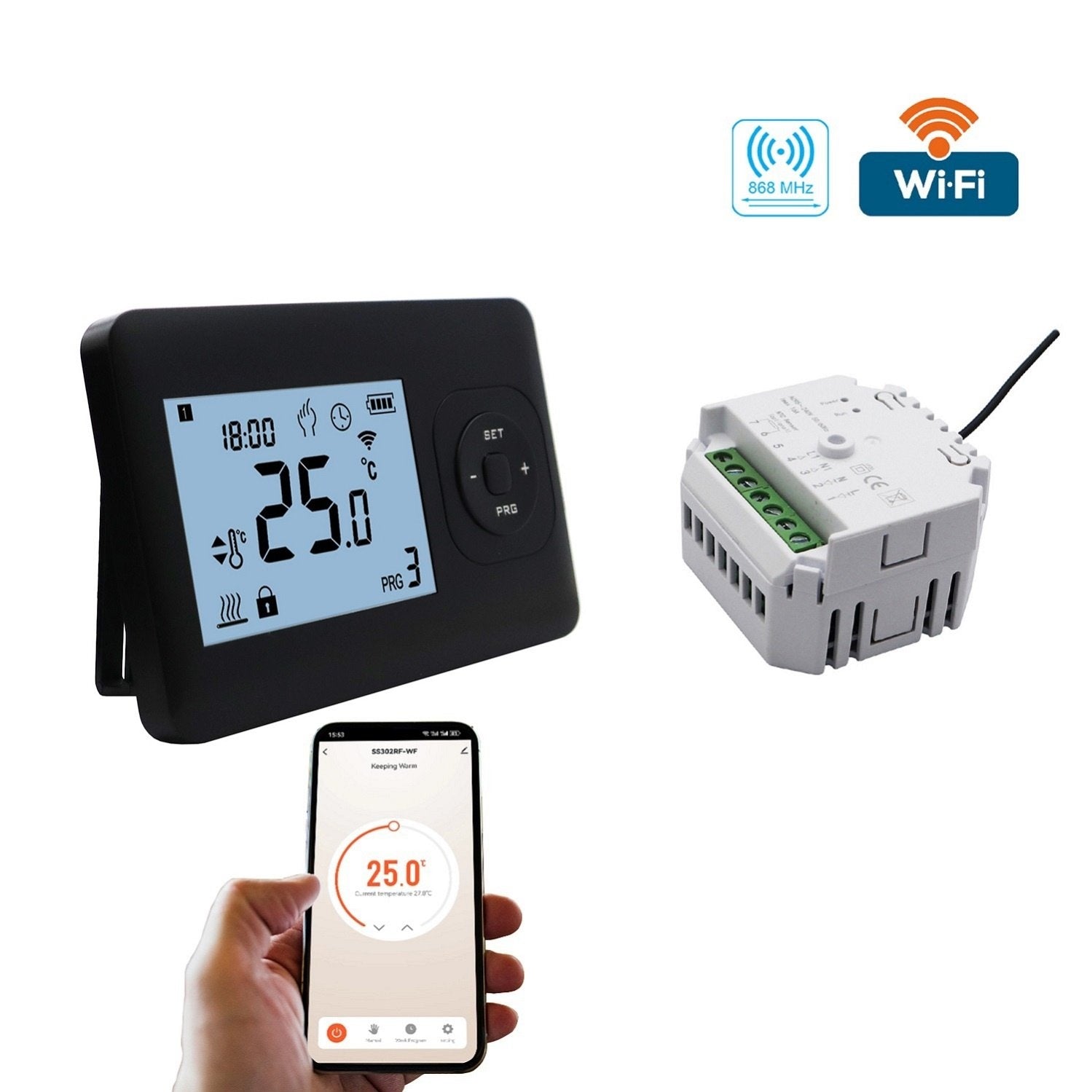

QH-Basic Black WiFi Thermostat including Built-in Receiver

Fully controllable with your smartphone — this is the QH Basic thermostat control with WiFi receiver. It can be used as a standalone thermostat or mounted on the wall thanks to the included mounting bracket. The thermostat is supplied as standard with the flush-mount mini WiFi receiver. For multiple panels we recommend multiple receivers. The panel is connected to the WiFi receiver and this is wirelessly paired with the thermostat. The thermostat requires 2 x AAA batteries. Via your mobile or via the thermostat you can easily set the full program, use the countdown timer and, for multiple rooms, give each room a separate zone name and set the temperature for it. Download the Quality Heating app for free from the iOS or Google Play Store.

Example situation 1) If you want to heat a room with 3 panels, you need one QH Basic WiFi set and 2 extra separate WiFi flush-mount receivers.

Example situation 2) If you have multiple rooms to heat, we recommend one thermostat control per room and one receiver per panel.

Download app

• Android Google Play
• iOS iPhone

Supplied as a set

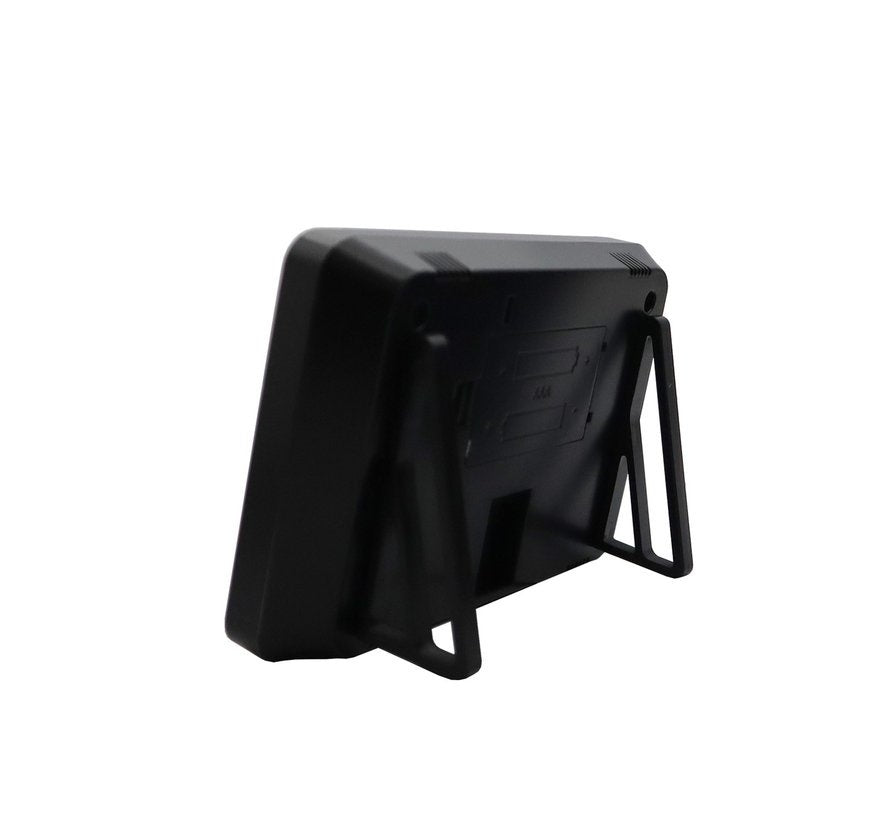

- Wireless thermostat with wall mounting bracket.

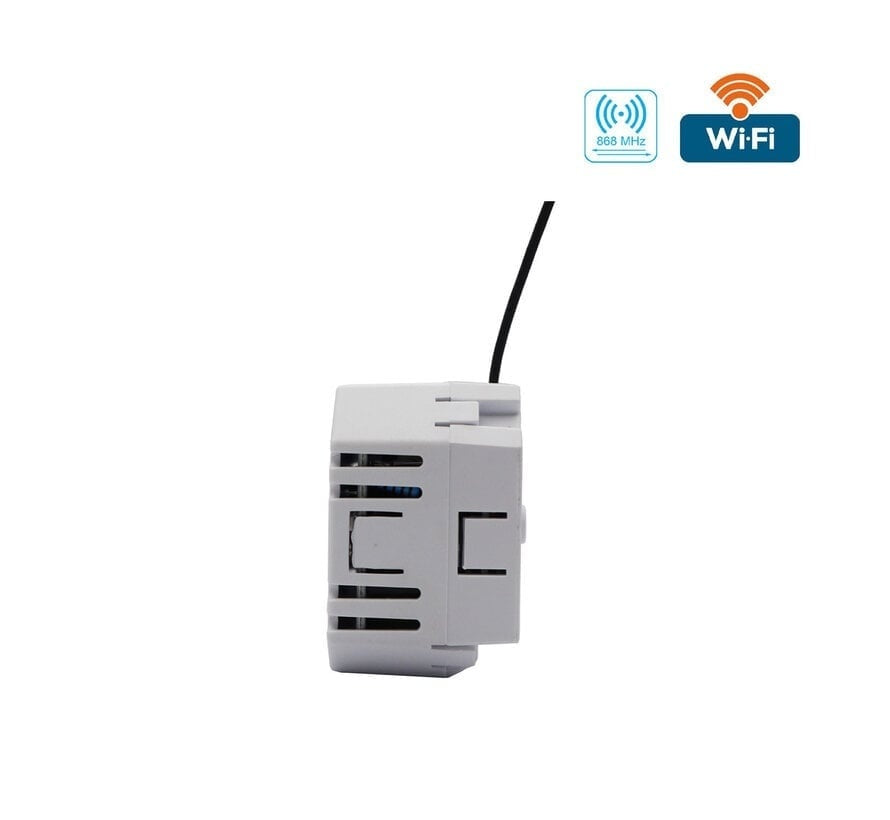

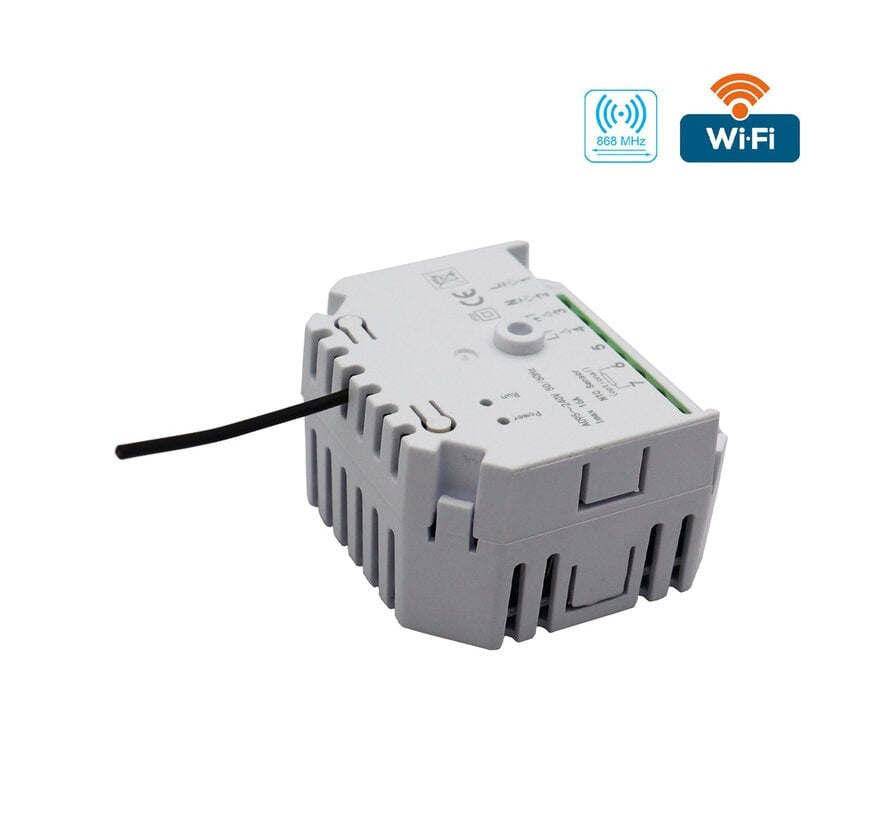

- Supplied including WiFi flush-mount receiver 16 Ampere 3600 Watt

Applications
- Infrared heating panels, also for connecting multiple panels to a one thermostat.
- Electric heating convectors, heaters, etc.

Technical specifications

Receiver input/output voltage: 230Vac, 50Hz / potential-free contact (NO/NC), max. 16A/230V
IP rating: 23
Thermostat power supply: Batteries
Function settings: Yes, via push buttons
Temperature setting: 5 ~ 30°C (room sensor)
Backlight / background lighting: yes
Temperature measurement: room
Frequency: 868 MHz and WiFi
Dimensions: 134 x 94 x 28 mm
Display size: 69 x 49 mm
Receiver dimensions: 45 x 45 x 23 mm
Receiver model: socket and surface-mounted
Color: white
Certification: CE, EN, EMC (according to ISO 9001 and 9002)
Warranty: 2 years
