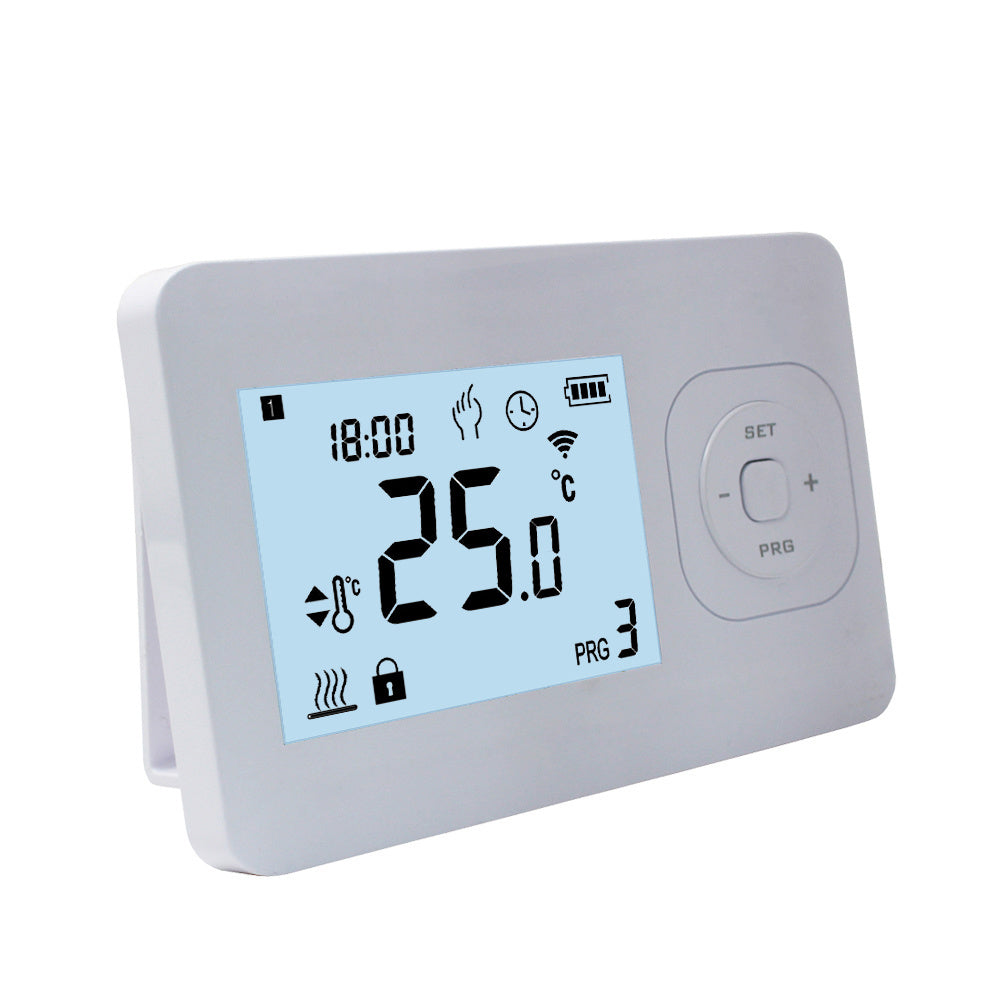

QH Basic wireless programmable WiFi thermostat

Fully controllable with your smartphone: this is the QH Basic thermostat control with WiFi receiver. It can be used as a standalone thermostat or mounted on the wall thanks to the supplied mounting bracket. The thermostat is supplied standard with the compact surface-mount WiFi receiver. For multiple panels we recommend multiple receivers. The panel is connected to the WiFi receiver and this is wirelessly paired with the thermostat. The thermostat requires 2 x AAA batteries. Via your mobile or via the thermostat you can easily set the full program, use the countdown timer and, for multiple rooms, give each room a separate zone name and set the temperature for it. Download the Quality Heating app for free in the iOS or Google Play Store.

Example situation 1) If you want to heat a room with 3 panels, you need one QH Basic WiFi set and 2 additional separate WiFi receivers.

Example situation 2) If you have multiple rooms you want to heat, we recommend one thermostat control per room and one receiver per panel.

Download app

• Android Google Play
• iOS iPhone

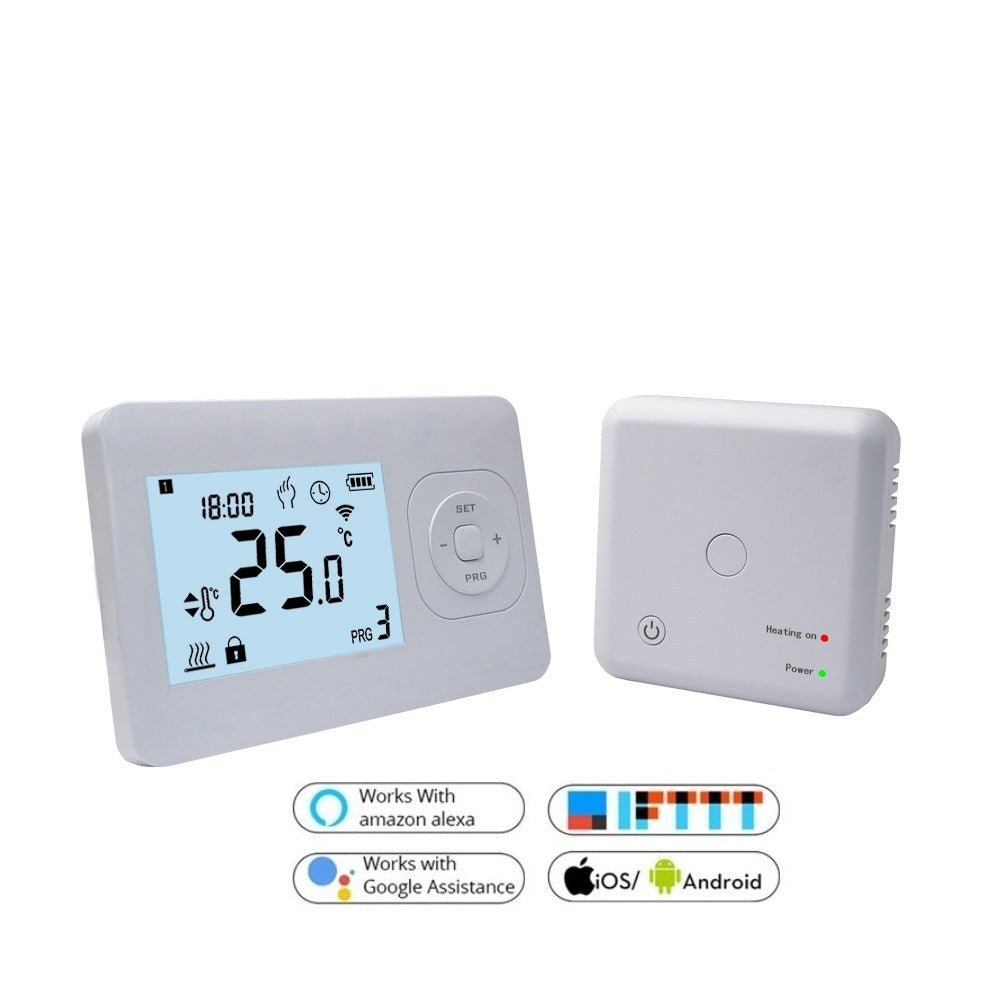

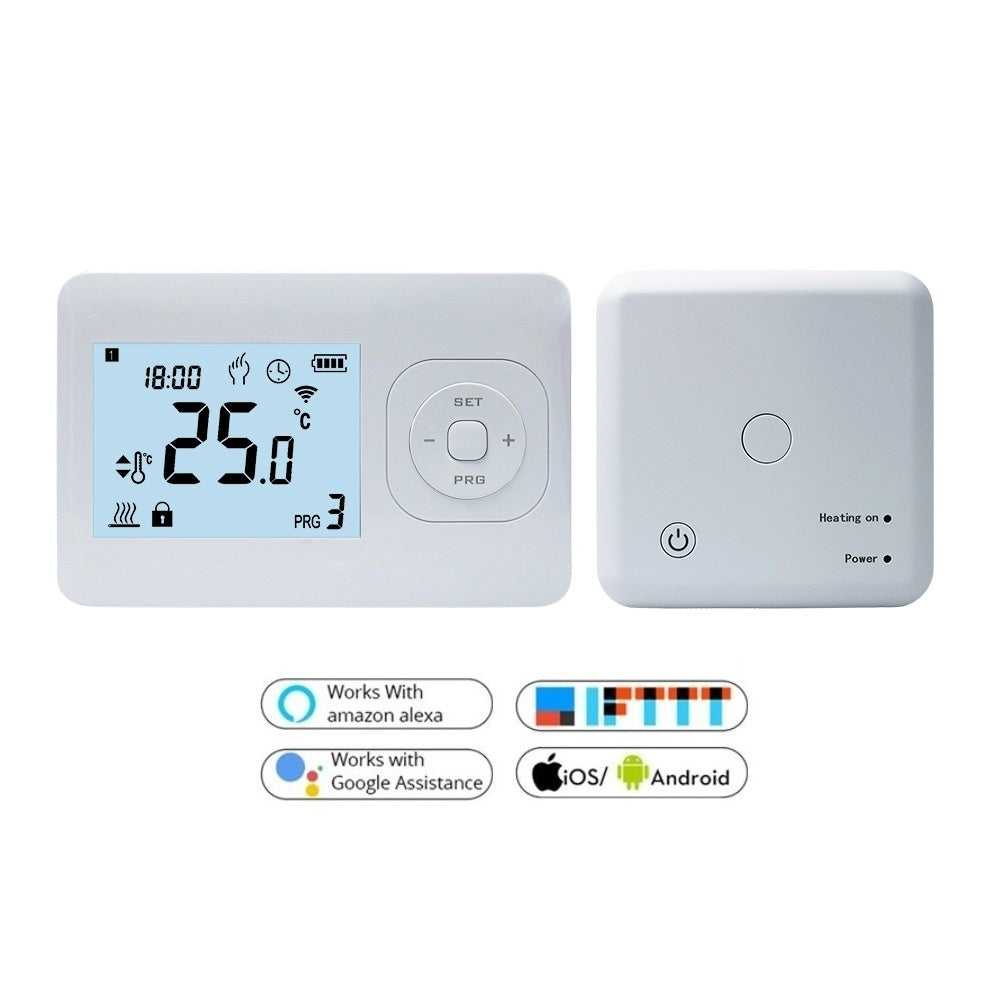

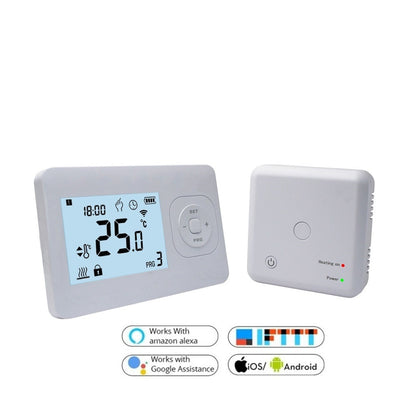

Supplied as a set

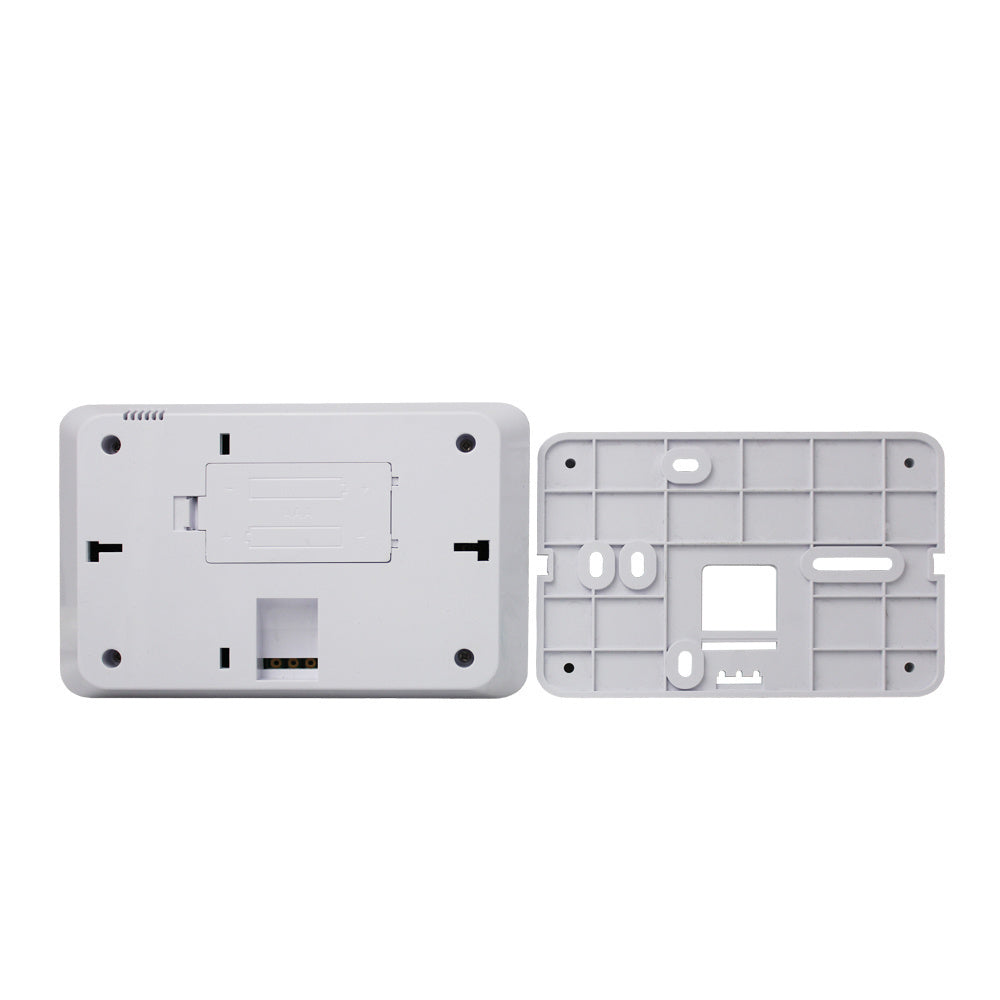

-  Wireless thermostat with wall mounting bracket.
-  Supplied including compact surface-mount WiFi receiver 10 Ampere 2200 Watt

Applications
- Infrared heating panels, also for connecting multiple panels to one thermostat.
- Electric heating convectors, heaters, etc.

Technical specifications

Receiver input/output voltage: 230Vac, 50Hz / potential-free contact (NO/NC), maximum 10A/250V
IP rating: 23
Thermostat power supply: Batteries
Function settings: Yes, via push buttons
Temperature setting: 5 ~ 30°C (room sensor)
Backlight / background lighting: yes
Temperature measurement: room
Frequency: 868 MHz and WiFi
Dimensions: 134 x 94 x 28 mm
Display size: 69 x 49 mm
Receiver dimensions: 86 x 86 x 23 mm
Receiver model: plug-in and surface-mount
Color: white
Certification: CE, EN, EMC (according to ISO 9001 and 9002)
Warranty: 2 years
