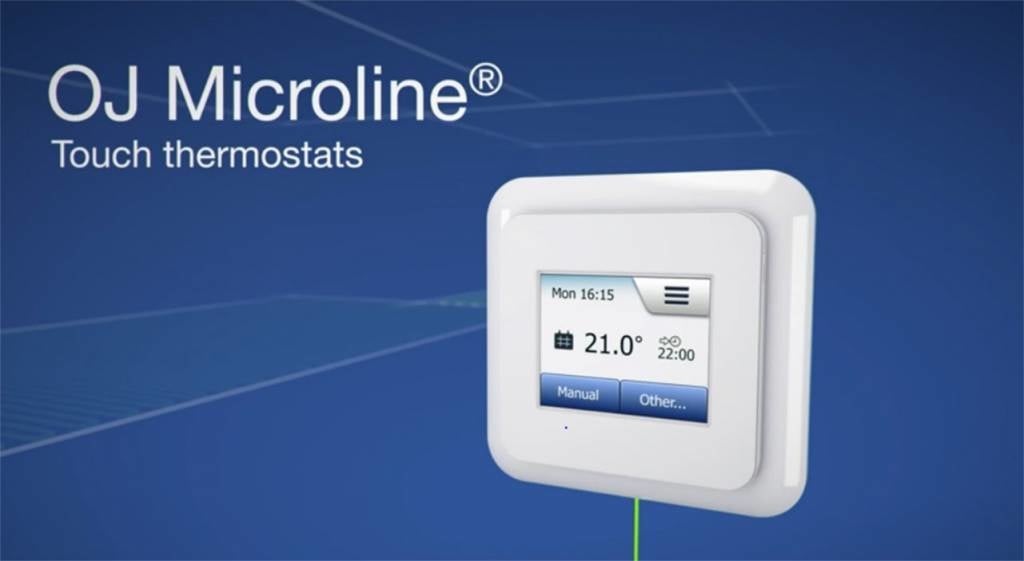

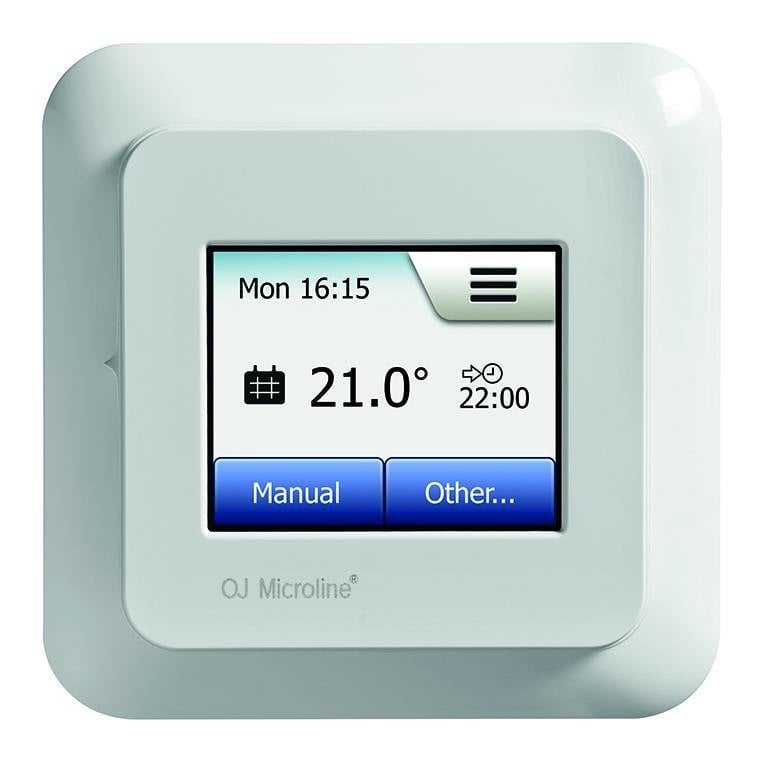

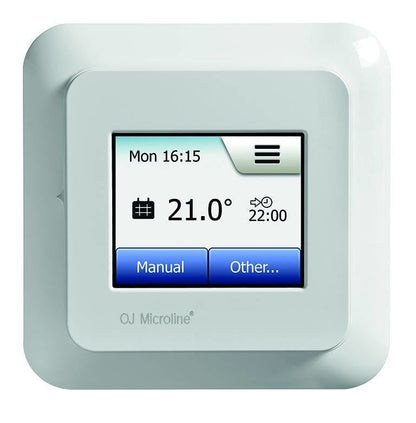

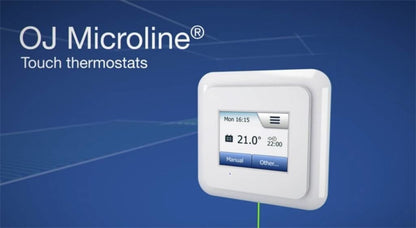

OCD5 Thermostat OJ microline

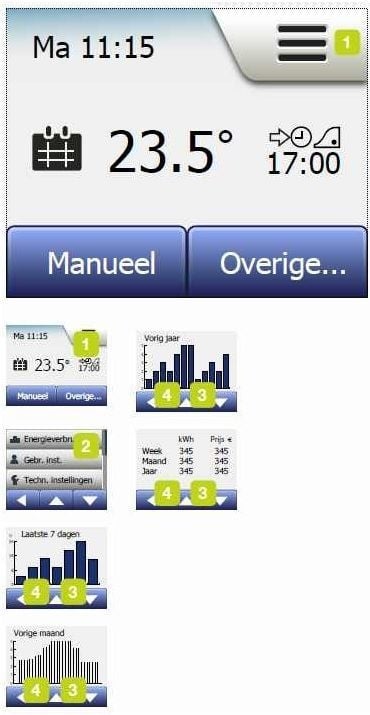

The functions you want, as well as the required capabilities, are automatically adjusted, so to speak. The OCD-5 thermostat also allows you to view the energy consumption of your underfloor heating. The underfloor heating thermostat is equipped with a frame set that fits standard Busch Jaeger switching equipment. The OCD-5 thermostat ensures that it is possible to turn on your heating system any day of the week at predetermined times.

Individual Temperature Adjustment

With the OCD-5 thermostat you have the ability to adjust individual temperatures for each day of the week. This is possible for six different periods. The thermostat comes as standard with a preset heating program that is suitable for most homes. This ensures that the thermostat always works immediately. Of course, it is possible to adjust it further according to your needs.

The electric underfloor heating thermostat has a customizable function that can automatically change heating times. In practice, this ensures that the desired temperature is reached at the beginning of a particular setting. After several days, the adjustable function will have learned how much earlier the heating needs to be turned on. To operate the touch screen, simply touch it gently with your finger. The especially comprehensive manual that comes as standard with the OCD-5 thermostat guarantees you an immediate overview of all the functions and features with which the thermostat is equipped.

Read Settings with Your Smartphone or Tablet

When installing the OCD-5 thermostat in your home, you will always have the option to read all settings and changes with your smartphone or tablet. This is possible thanks to a special QR code. In addition, through your favorite mobile device, you will also be able to check the energy consumption and heating costs without any problem. Simply scan the QR code with your smartphone and you will immediately have all the information you need on your device's screen.

Data Reading with a QR Code

When you have decided to configure your thermostat, it is usually not so easy to find out what functions are actually configured. The OCD5 thermostat changes that once and for all. In fact, using this thermostat ensures that you can very easily set up a QR code after which all the data stored by the thermostat can be displayed. This includes not only the basic data of the thermostat, but also what you have configured yourself, as well as what exactly the energy consumption has been.

Technical Specifications Type OCD5

• Power supply voltage: 100-240VAC
• Maximum power: Ohm load 16 Amp. 3600 W (inductive load: 1 Amp.)
• Standby power < 0.5 W
• Installation: recessed
• Switch for maximum load of 16 Amp.
• Comfort temperature range: +5°C; +40°C
• Floor temperature range: +5/+40 °C
• On/off differential 0.4 °C
• Control principle PWM / PI
• Protection class: IP 21
• Dimensions (H x W x D): 82 x 82 x 40 mm
• Installation depth: 23 mm
• Color: RAL 9010, neutral white
• Display: 176 x 220 pixels, TFT
• Room sensor: yes (integrated)
• Floor sensor: 3 m connection cable
• Timer: automatic
• Operation: intuitive touch screen
• Instruction manual: in Dutch
• Certified according to: CE, VDE, BEAB, NEMKO
