MWD5 met Wifi Thermostaat OJ microline

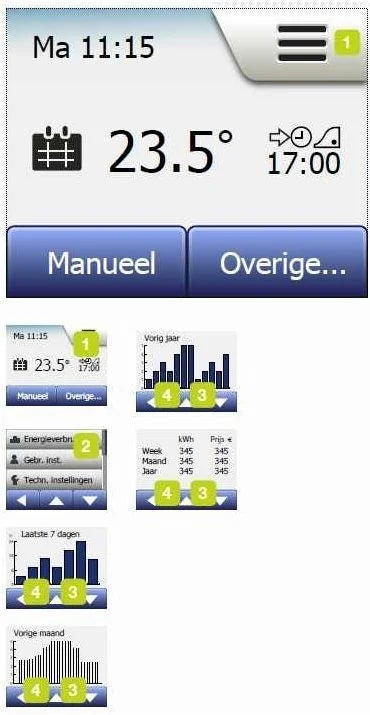

OJ microline MWD5 Wifi thermostat controllable with your smartphone. Highly advanced Wifi thermostat with programmable options, fully configurable with your phone. The MWD-5 thermostat also makes it possible to view the power consumption of your underfloor heating. The underfloor heating thermostat is equipped with a frame set that fits standard Busch Jaeger switchgear. The MWD-5 thermostat ensures that it is possible to switch your heating system on at predetermined times on any day of the week.

Setting individual temperatures

By using the MWD-5 thermostat you have the option to set separate temperatures for each day of the week. This is possible for six different periods. The thermostat is delivered as standard with a pre-set heating program that is suitable for most homes. This ensures that the thermostat will work immediately. Of course it is possible to further adjust this as desired.

The MWD5 OJ thermostat has an adaptive function that can automatically change the heating times. In practice, this ensures that the desired temperature is reached at the start of a set period. After a few days, the adaptive function will have learned how much earlier the heating needs to be switched on.

Technical specifications type MWCD5

• Supply voltage: 100-240VAC
• Max. power: Ohmic load 16 Amp. 3600 Watt (inductive load: 1 Amp.)
• Standby power < 0.5 W
• Installation: flush-mounted
• Switch for maximum 16 Amp. load
• Comfort temperature range: +5°C; +40°C
• Floor temperature range: +5/+40 °C
• On/Off differential 0.4 °C
• Control principle: PWM / PI
• Protection class: IP 21
• Dimensions (H x W x D): 82 x 82 x 40 mm
• Mounting depth: 23 mm
• Color: RAL 9010, neutral white
• Display: 176 x 220 pixels, TFT
• Room sensor: yes (built-in)
• Floor sensor: 3 m connection cable
• Timer: automatic
• Control: intuitive touchscreen
• Instruction manual: in Dutch
• Certified according to: CE, VDE, BEAB, NEMKO

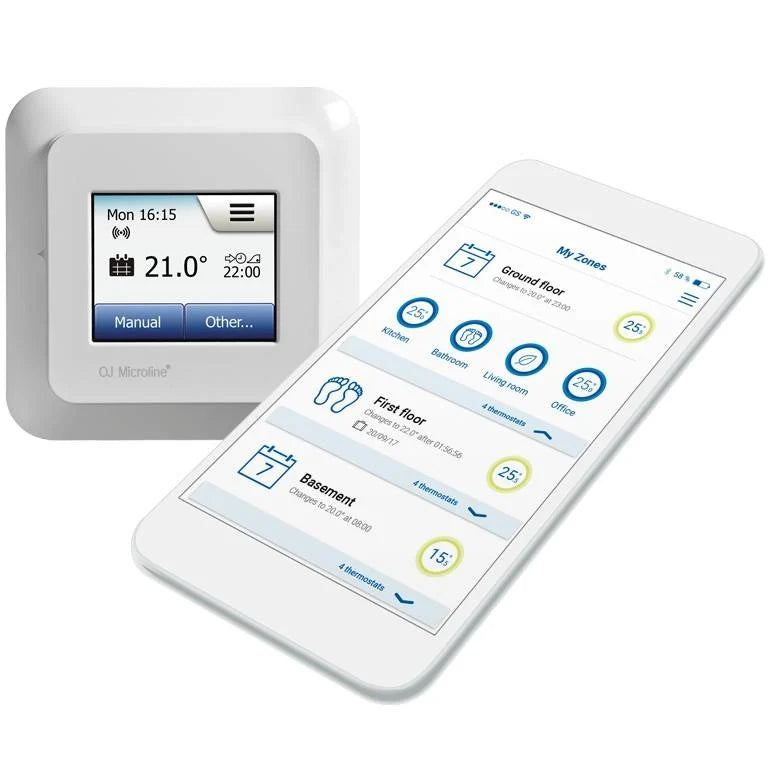

• App controllable by multiple users
• User-friendly app
