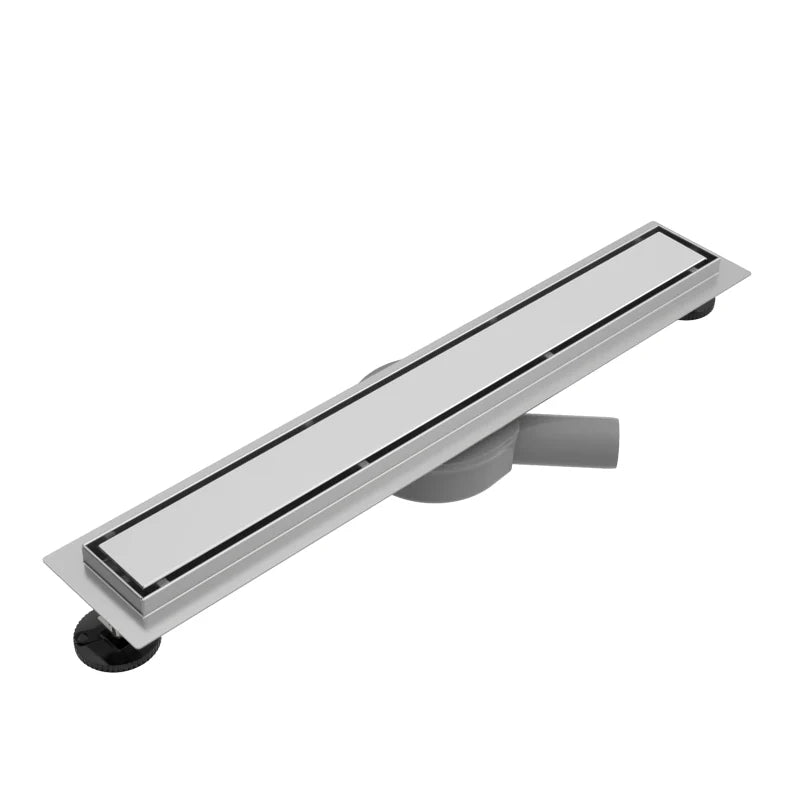

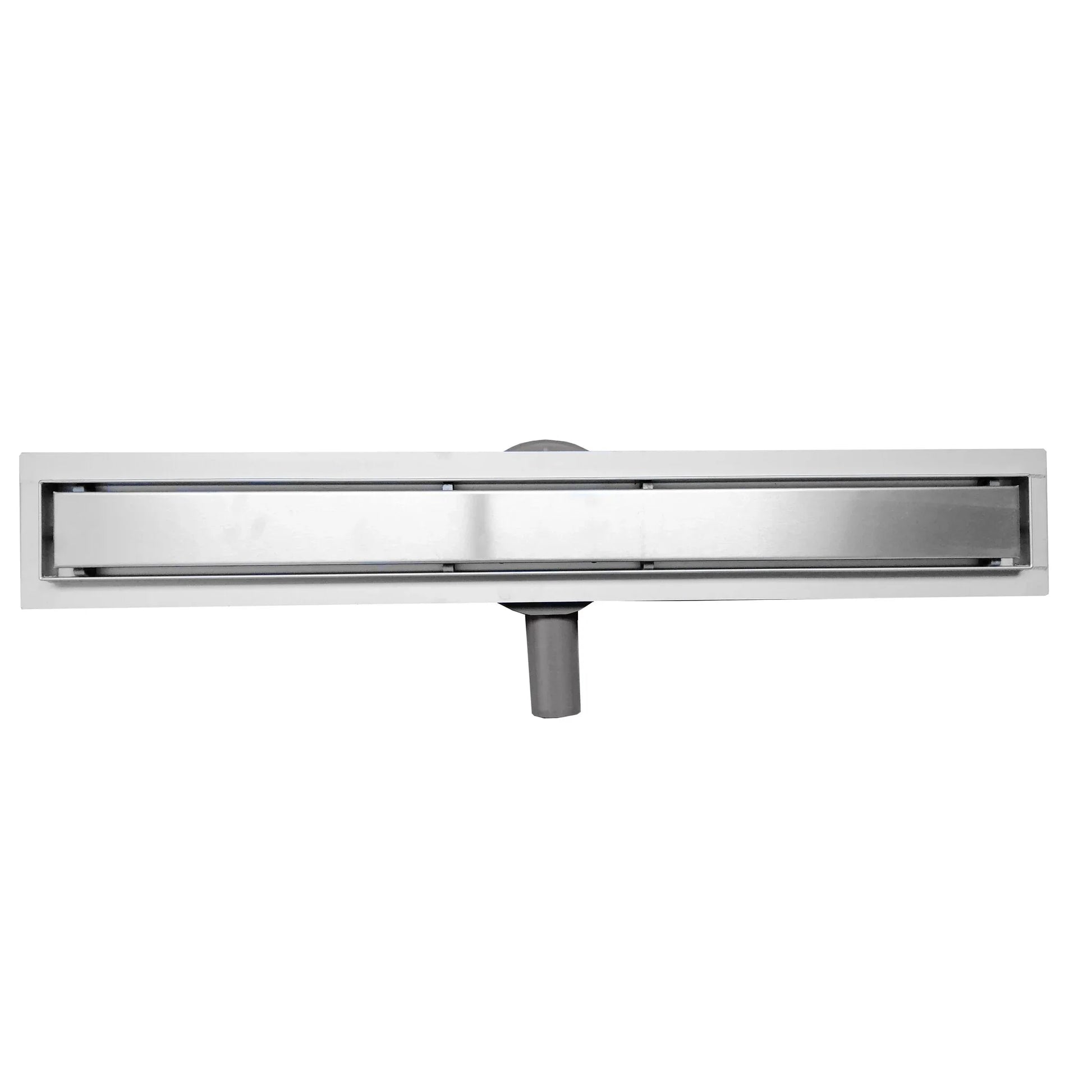

Shower Drain LunaDrain completo with flange flexible

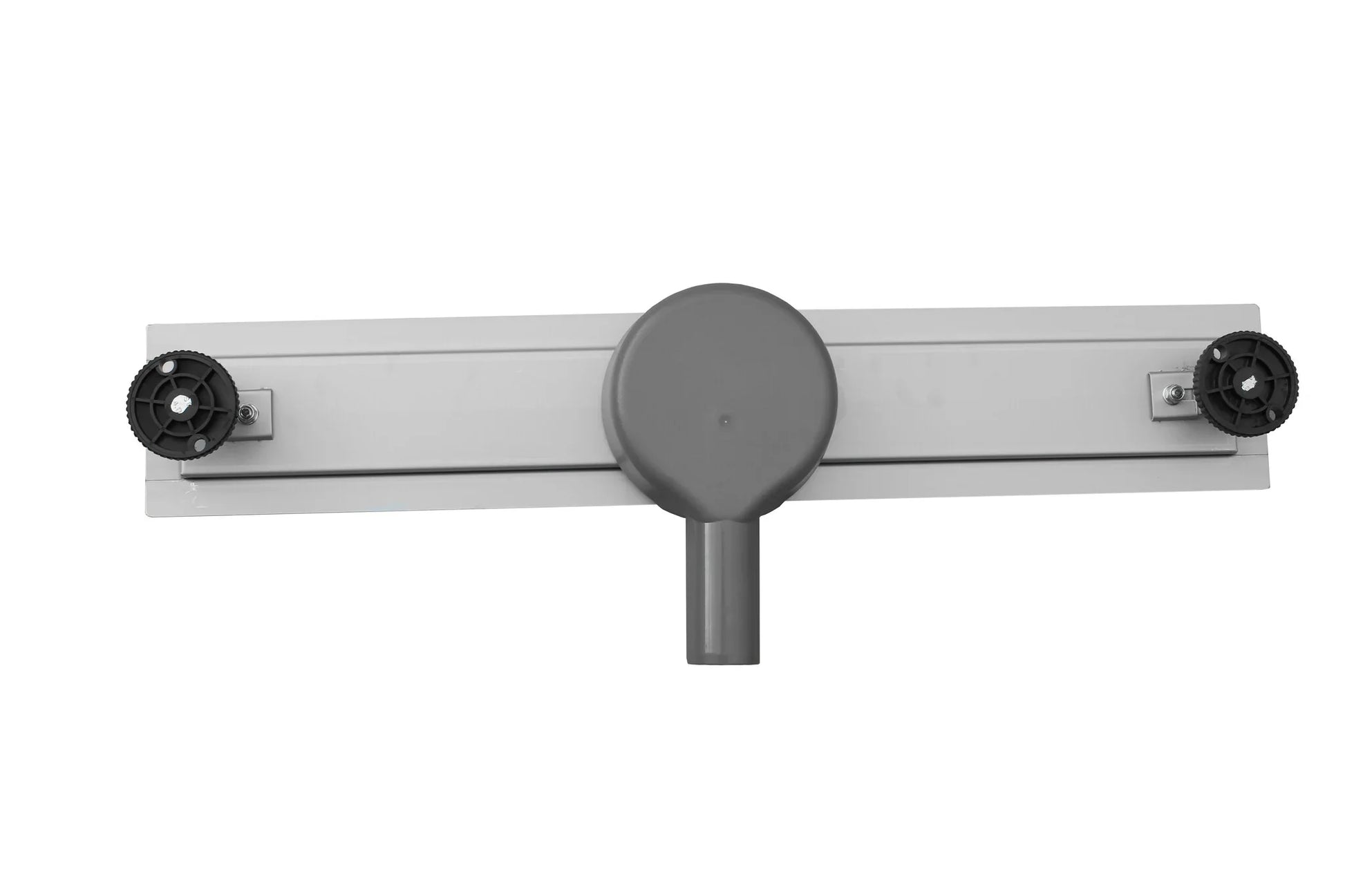

Enjoy the perfect combination of design, functionality and reliability with the Nurion Lunadrain shower channel. This high-quality shower drain is manufactured with a robust stainless steel body and an intelligent PVC trap housing. Thanks to its 360-degree rotating side outlet, Lunadrain offers maximum flexibility when connecting to the drainage system, making it ideal for renovation projects or situations with limited installation space.

With a reduced installation height and included water retention devices, Lunadrain is easy and safe to install. The stainless steel guarantees a luxurious appearance, great durability and excellent heat resistance, exactly what you can expect from Nurion.

Waterproof safety with flange design

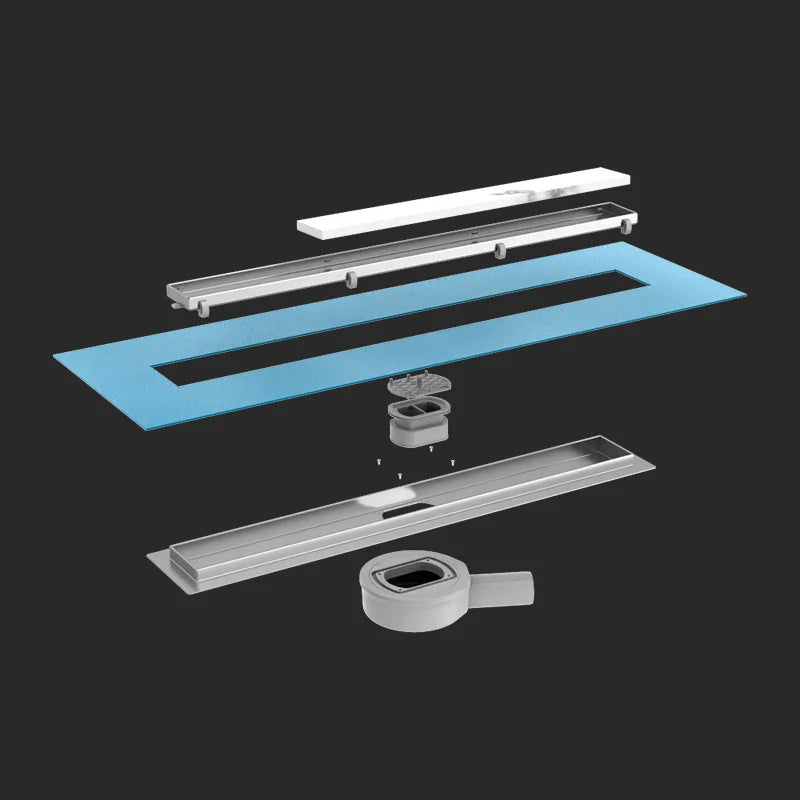

The Lunadrain comes equipped as standard with a surrounding stainless steel flange. This flange allows placement of a waterproof membrane (included), essential for application on non-waterproof floors such as wood, and extra safe on concrete floors.

The membrane acts as a reliable barrier: in case of leakage, it prevents moisture from affecting the substructure. Any water that may have entered evaporates naturally. This makes Lunadrain a smart choice for any wet room.

Designer grates to your taste

Each Lunadrain is supplied with an elegant stainless steel top grate. Choose the grate that best suits your bathroom style:

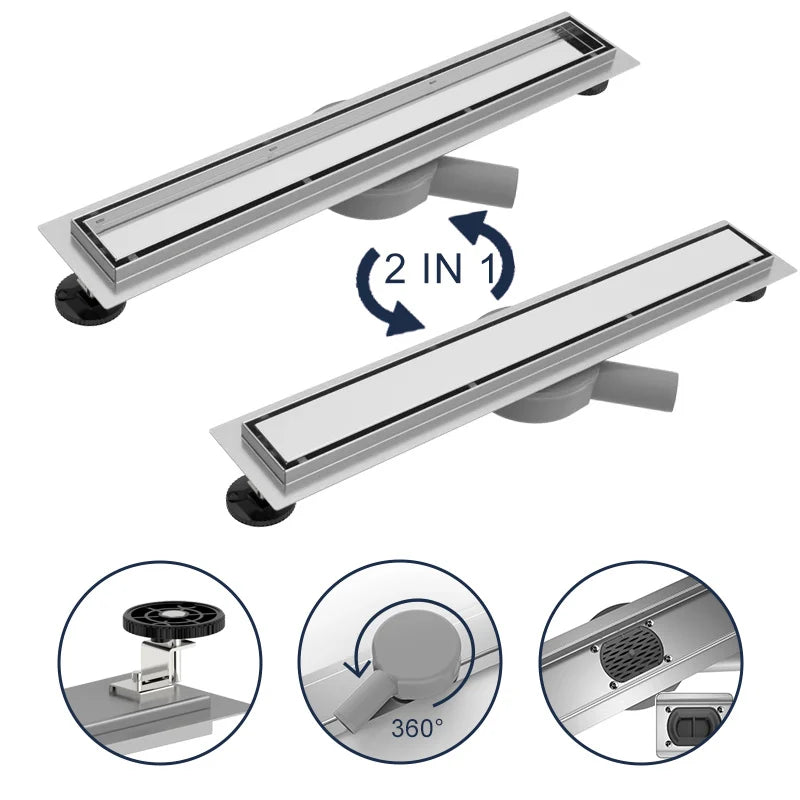

• 2-in-1 tile grate: place tiles on the grate for an invisible finish or flip it over and use it as a closed stainless steel grate. (Maximum tile + adhesive thickness: 13 mm)

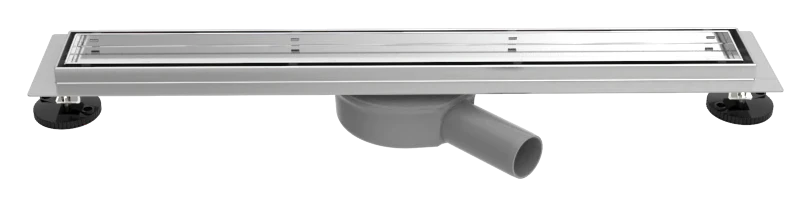

• Row: minimalist grate with a straight line of slots

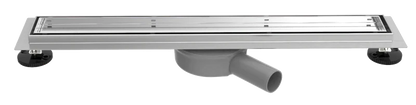

• Dots: playful design with falling water droplets

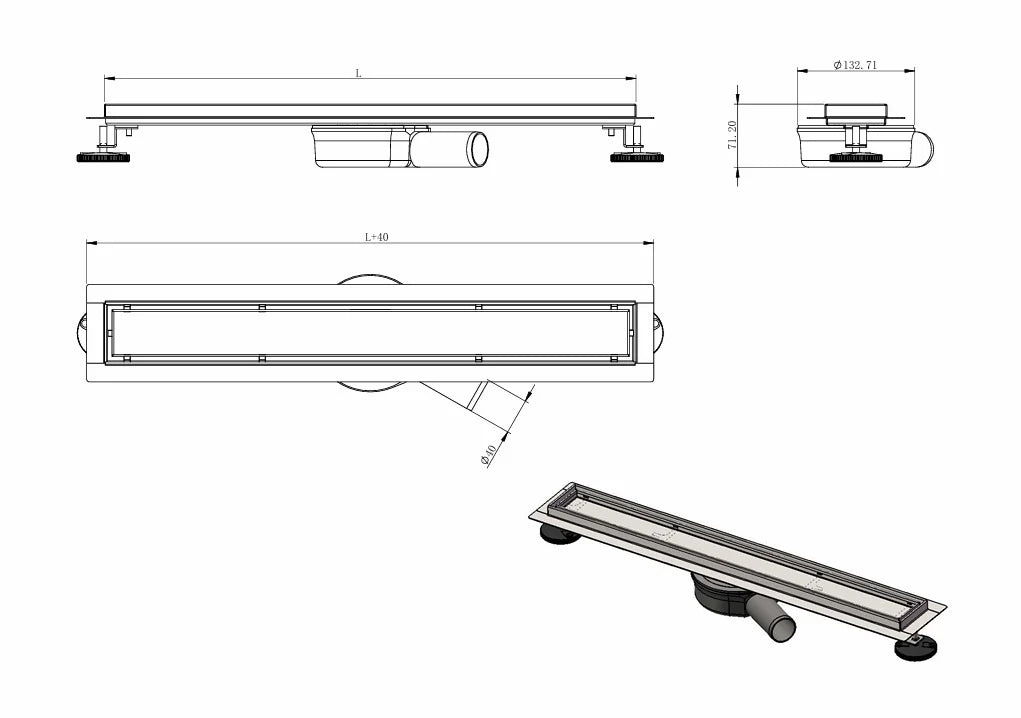

Technical specifications of Lunadrain

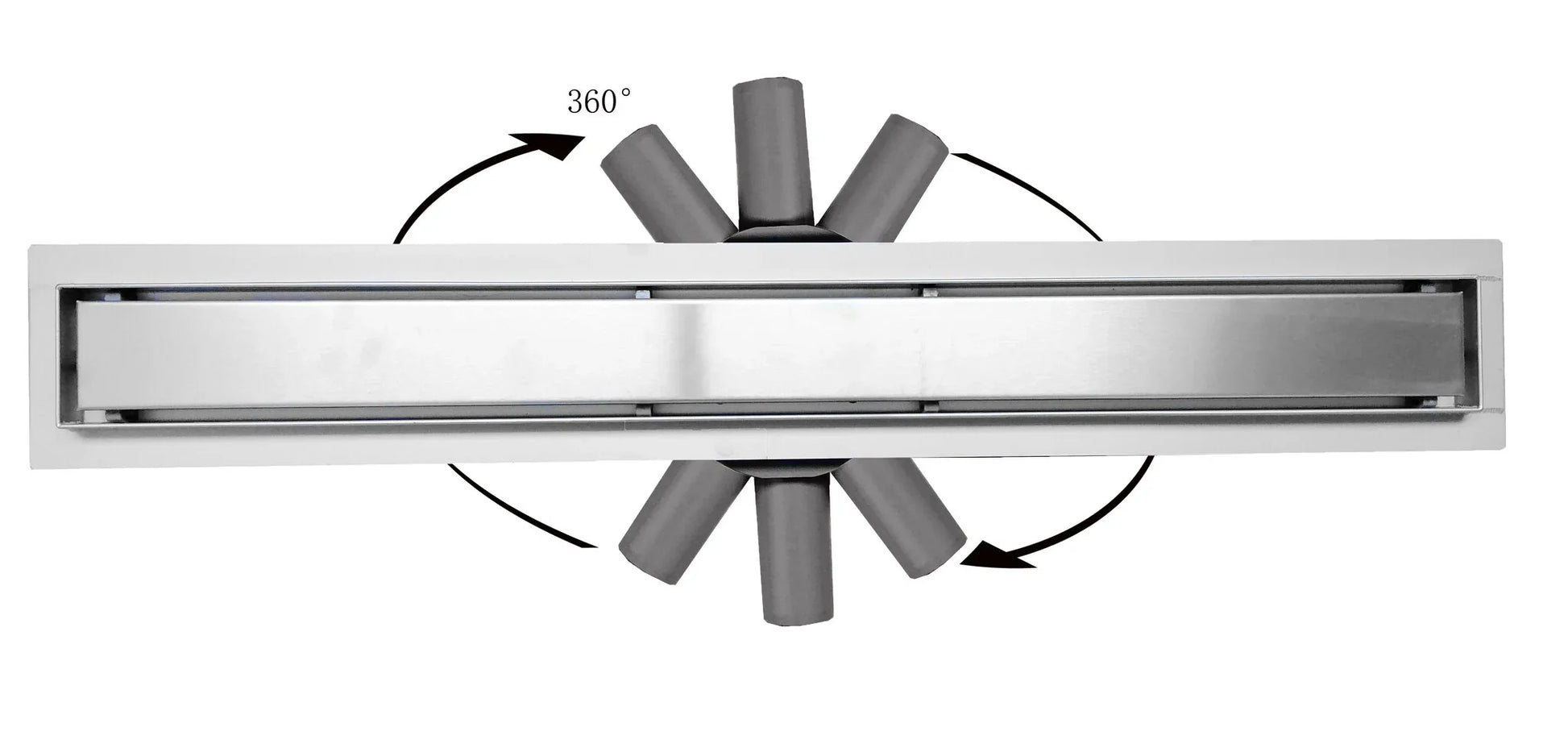

• 360° rotating PVC side outlet (40 mm)

• 40 to 50 mm adapter included

• Choice of stainless steel top grate

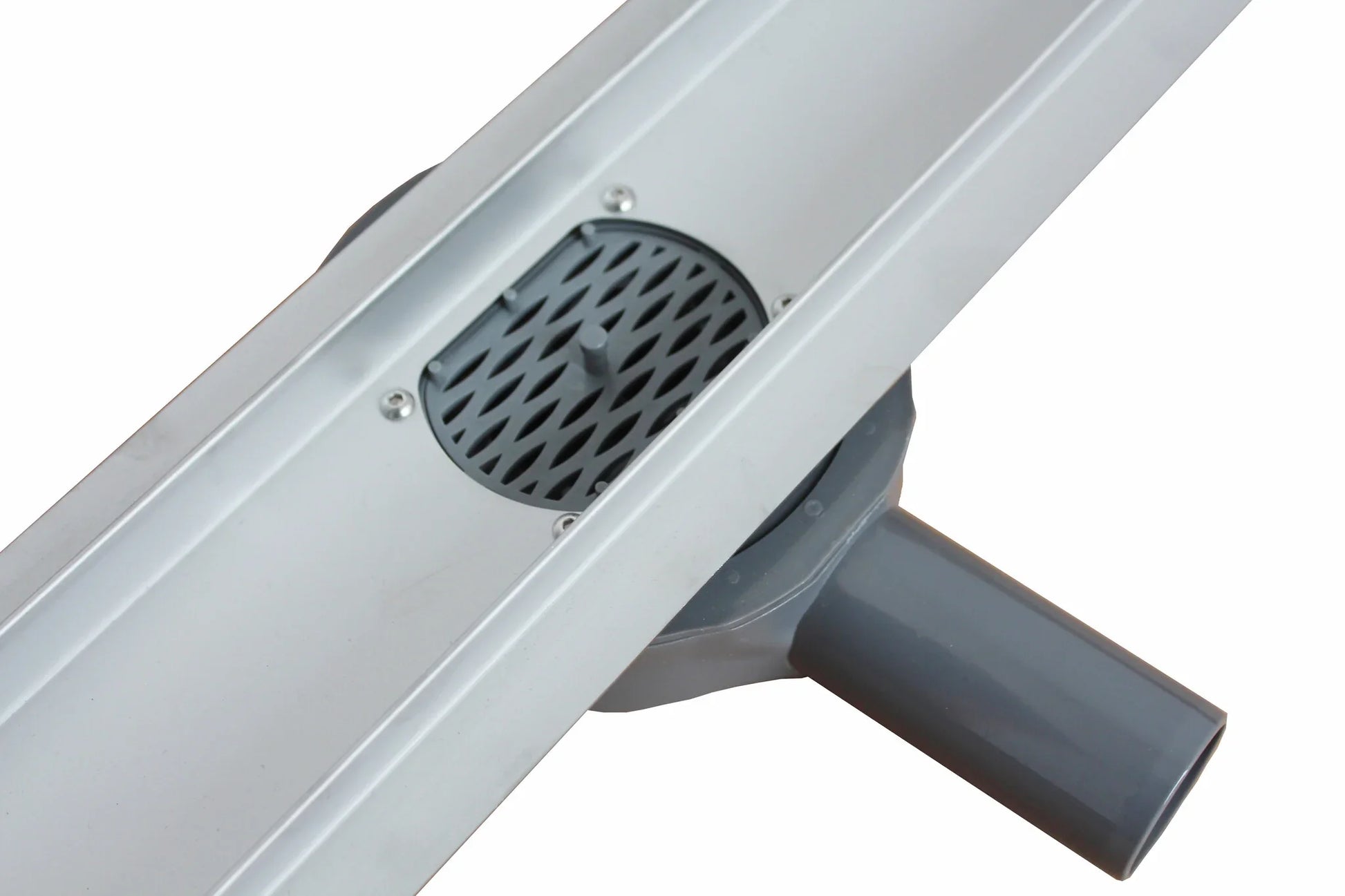

• Removable plastic trap: easy to clean

• Hair filter included

• Surrounding flange (20 mm)

• Waterproof membrane included

• Capacity: 30 liters per minute average

Watertight installation: Nurion's two golden tips

1. Correct fixing of membrane and flange
   Fix the waterproof membrane to the flange and finish with joint compound. This ensures a watertight connection between the Lunadrain and the shower floor.

2. Treat the entire shower area with waterproof coating
   Apply waterproofing tape and compound on the joints and cover the entire surface up to approximately 150 cm height. This prevents leaks through tile joints, which are never completely watertight.
