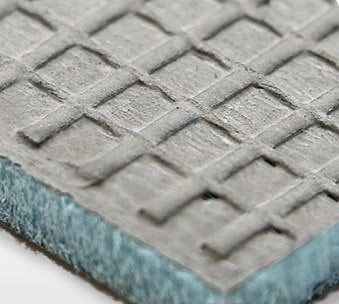

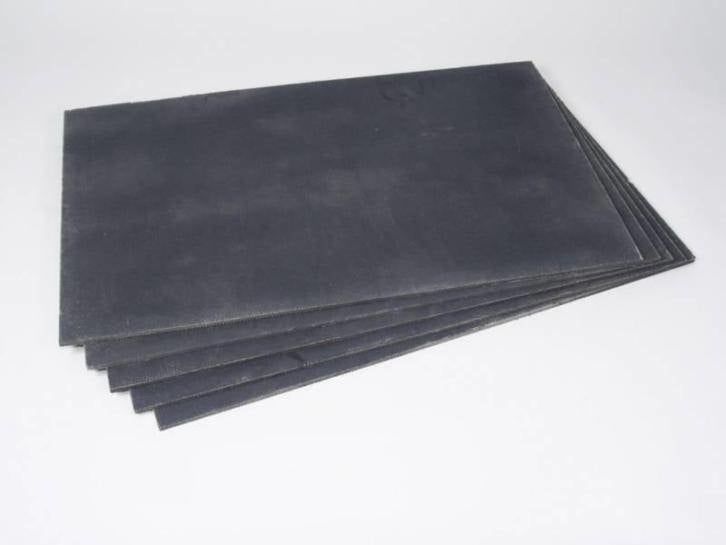

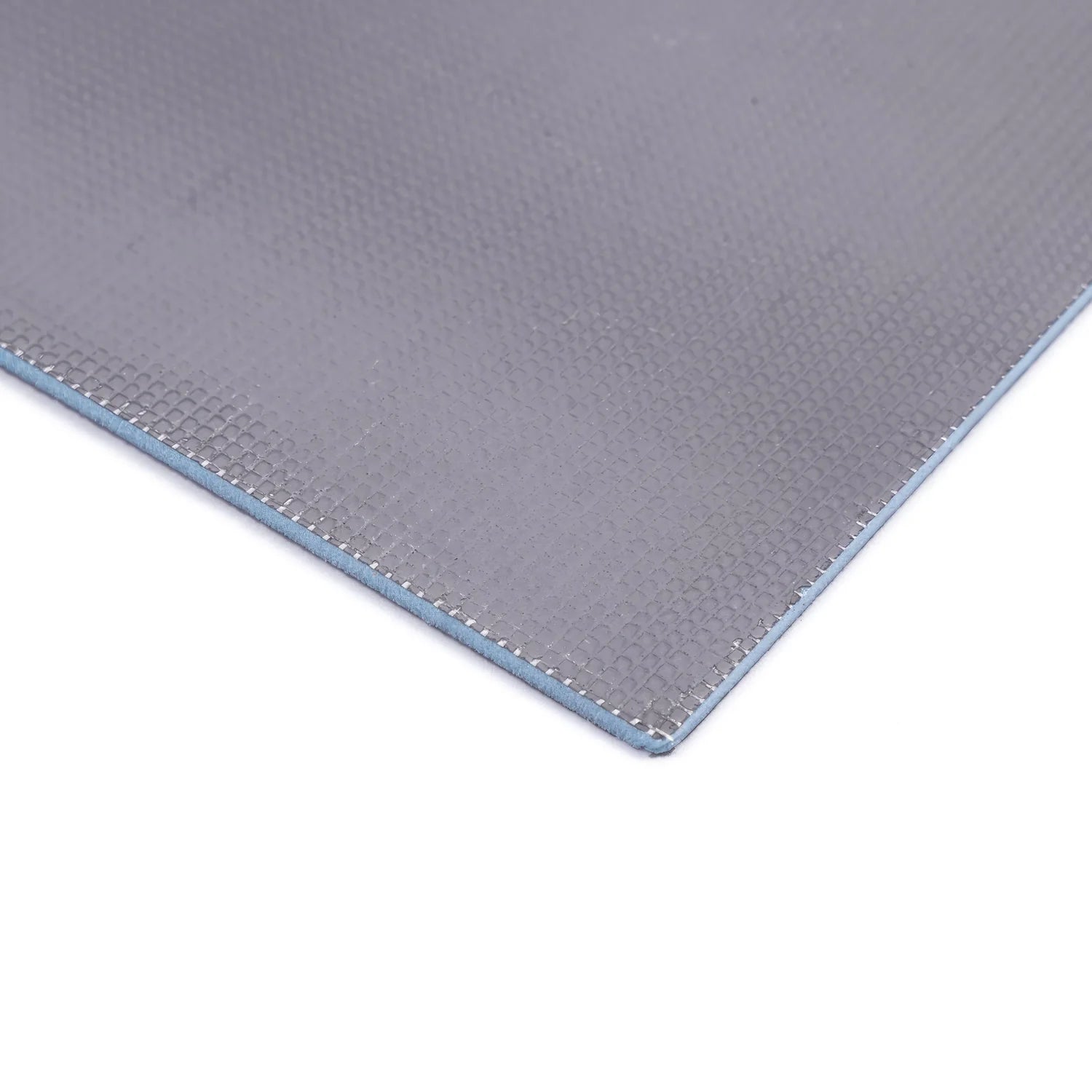

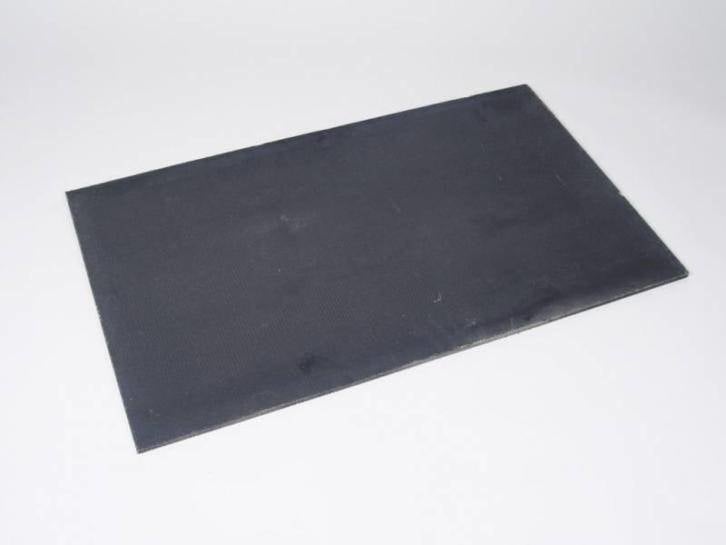

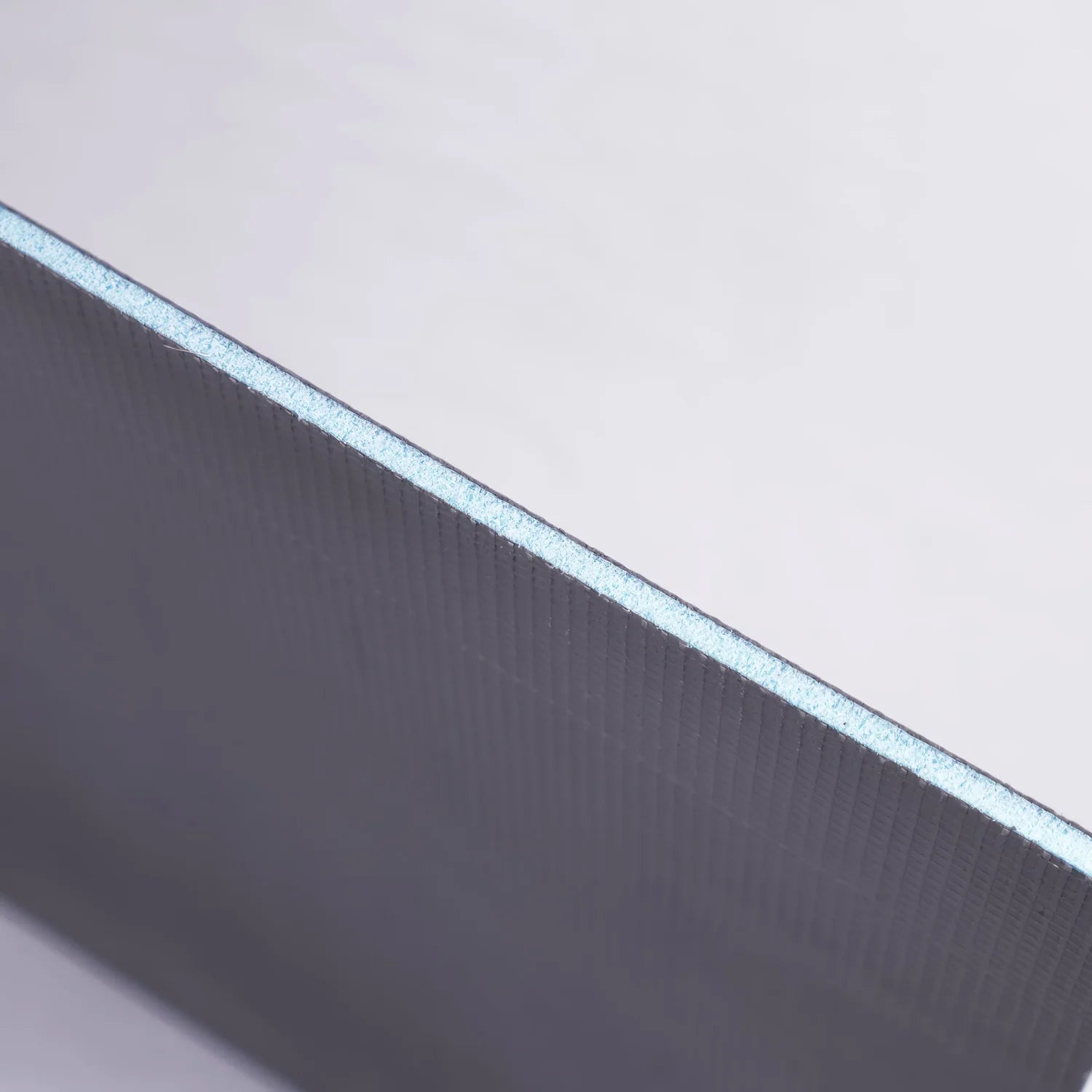

Insulation Board (Tiles) Hardfoam ISO64 6, 10 and 20 mm

For example, for a 3m2 bathroom / 0.72m2 = 4.1 insulation boards are needed = 5 pieces.

Quality Heating's pressure-resistant ISO-64 insulation boards offer the possibility of heating the floor more quickly with 33% efficiency. Specially developed for under tile floors. Even if you have limited installation height, Quality Heating's ISO64 insulation panel offers you a solution. With the ISO64, you will increase the efficiency and response time of underfloor heating plates. These properties translate into lower energy consumption. The ISO64 rigid foam is coated on both sides with a special mortar that is processed into the panel's fiberglass structure.

Additional Information ISO-64 Polystyrene Rigid Foam

- Moisture and rot resistant
- Fire resistant
- Does not absorb moisture
- Suitable for all types of underfloor heating systems
- Modified with high-quality mortar
- Complete fiberglass structure
- Excellent thermal insulation
- Very good noise reduction

Technical Specifications

• - Water resistance: water absorption > 0.5% after 28 days under water, according to DIN 53 421
  - Thermal resistance -30 to + 70 °C
  - Sound insulation Above floor -5.6 dB Below floor -21 dB
  - Compressive strength > 0.20 N/mm² according to DIN 52 615
  - Insulation value 0.039 W/mK according to DIN 4108
• R-value 6mm: 0.15m2 K/W
• R-value 10 mm: 0.26 m2 K/W
• R-value 20 mm: 0.51 m2 K/W

Installation of ISO-64 Rigid Foam Panels

If the board is installed on a wooden subfloor, we recommend both gluing and screwing. If the board is installed on a concrete/cement screed, gluing alone is sufficient. Tile adhesive can be used for this purpose.

The ISO-64 insulation panel is available in the following dimensions:
1200 mm x 600 mm and a thickness of 6, 10 and 20 mm per 0.72 m2 panel.
